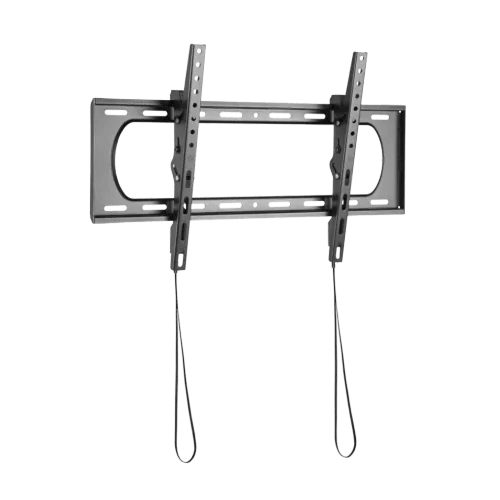

VSYS VS01A-46T Heavy-Duty Tilting Wall Mount for 37"–86" Displays, 80 kg

The VSYS VS01A-46T is a heavy-duty tilting TV wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a tilting wall mount, it solves the problem every above-eye-level screen has: ceiling lights and windows reflecting straight back at the audience. A toolless mechanism swings the panel through plus 10 to minus 10 degrees, so a 37" to 86" display mounted high in a reception hall, canteen or lecture theatre can be angled down towards the people actually watching it.

Built by VSYS, the VS01A-46T carries up to 80 kg on 1.8 mm cold-rolled steel arms and a matching wall plate finished in powder-coated black. Installers set the tilt after the screen is hung — no dismounting, no tools — and quick-release pull cords free the panel from the wall plate for rear cable work. The 60 mm clearance is the depth the tilt mechanism needs to swing.

Key features

• Toolless tilt through plus 10 to minus 10 degrees, adjustable after the display is hung
• Suits flat and curved screens from 37" to 86" on VESA patterns from 50x50 mm to 600x400 mm
• 80 kg (176 lbs) load rating on 1.8 mm cold-rolled steel, strength tested four times
• Powder-coated black finish that disappears behind the panel in dark AV rooms
• Quick-release spring locks with pull cords so one technician can drop the screen for servicing
• Open backplate keeps sockets, signal cabling and airflow accessible behind the display
• Fixes to solid walls or dual studs at 406 mm, 450 mm or 600 mm centres with a hook-on bubble level supplied
• Tilting wall mount built for commercial interactive displays and TVs
• Manufactured by VSYS for reliable everyday use

Specifications

• Model: VSYS VS01A-46T
• Accessory Type: TV Wall Mount
• Mounting Type: Wall Mount, tilting
• Display Compatibility: 37" – 86", flat or curved
• VESA Pattern: 50x50 mm to 600x400 mm (maximum hole spread 645x402 mm)
• Maximum Load: 80 kg (176 lbs)
• Tilt Range: +10° to -10°, toolless adjustment
• Wall Clearance: 60 mm (2.4 in)
• Stud Spacing Supported: 406 mm, 450 mm or 600 mm
• Material: 1.8 mm cold-rolled steel, powder-coated black
• Testing: Strength tested 4x
• In the Box: Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Lahore, Rawalpindi, and Faisalabad that need a secure, properly sized tilting TV wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS01A-46T in Pakistan?

Touchscreens.com.pk supplies the VSYS VS01A-46T across Pakistan, including Lahore and Rawalpindi, with delivery and after-sales support included.

How far does the VSYS VS01A-46T tilt?

Plus 10 to minus 10 degrees, set by hand without tools. Because the adjustment is made with the screen already on the wall, an installer can dial in the exact angle once the room lighting and seating are in place rather than guessing beforehand.

What size and weight of display does the VSYS VS01A-46T support?

Flat or curved panels from 37" to 86" weighing up to 80 kg (176 lbs). The arms and wall plate are pressed from 1.8 mm cold-rolled steel and the assembly is strength tested four times.

What VESA patterns does the VSYS VS01A-46T fit?

Anything from 50x50 mm up to 600x400 mm, with a maximum hole spread of 645x402 mm. Measure the horizontal and vertical distance between the mounting holes on your panel, or send us the model number and we will check it for you.

How far from the wall does the VSYS VS01A-46T hold the display?

Around 60 mm (2.4 in). That depth is what the tilt mechanism needs to rotate freely, and it also leaves useful room for a recessed socket and signal cabling behind the panel.

What is the price of the VSYS VS01A-46T?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

What is included with the VSYS VS01A-46T?

The wall plate, bracket arms, a mounting hardware kit for solid-wall or dual-stud fixing, a hook-on bubble level and printed instructions. Specialist fixings for hollow or block walls can be quoted alongside.

Do you install the VSYS VS01A-46T on site and deliver outside major cities?

Yes. Our technicians carry out wall fixing and display mounting for teams in Multan and Peshawar, and we dispatch nationwide from our Pakistan warehouse to Quetta and everywhere in between.

Can you supply the VSYS VS01A-46T for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.

What warranty and local support come with the VSYS VS01A-46T?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
