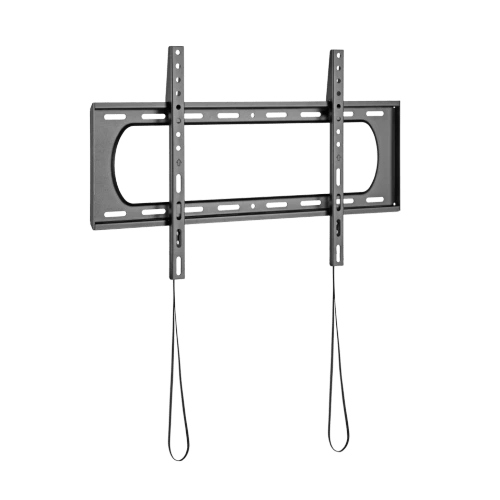

VSYS VS01A-46F Heavy-Duty Fixed Wall Mount for 37"–86" Displays, 80 kg

The VSYS VS01A-46F is a heavy-duty fixed TV wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a fixed wall mount, it holds a 37" to 86" panel flat against the wall at 30 mm clearance and keeps it there — no tilt, no drift, nothing for a user to knock out of alignment. The bracket arms and wall plate are pressed from 1.8 mm cold-rolled steel and rated to 80 kg, so a large commercial panel in a lobby, classroom or operations room stays exactly where the integrator set it.

Built by VSYS, the VS01A-46F is engineered for straightforward AV integration — the wall plate lands on solid masonry or across dual studs at 406, 450 or 600 mm centres, a hook-on bubble level squares it up, and quick-release pull cords let one technician lift the screen clear for rear cable access and click it back in seconds. The open-architecture backplate leaves room behind the panel for sockets, cabling and airflow.

Key features

• Fits flat and curved displays from 37" to 86" with VESA patterns from 50x50 mm up to 600x400 mm
• Rated to 80 kg (176 lbs) on 1.8 mm cold-rolled steel arms and wall plate, strength tested four times
• Low 30 mm wall clearance holds the screen flush for a clean finish in boardrooms and reception areas
• Quick-release spring locks with pull cords allow single-person removal and re-seating for servicing
• Open-architecture backplate leaves space for power outlets, concealed cabling and ventilation
• Fixes to solid walls or dual studs at 406 mm, 450 mm or 600 mm centres, hook-on bubble level supplied
• Powder-coated finish over cold-rolled steel for a long service life in daily commercial use
• Fixed wall mount built for commercial interactive displays and TVs
• Manufactured by VSYS for reliable everyday use

Specifications

• Model: VSYS VS01A-46F
• Accessory Type: TV Wall Mount
• Mounting Type: Wall Mount, fixed
• Display Compatibility: 37" – 86", flat or curved
• VESA Pattern: 50x50 mm to 600x400 mm (maximum hole spread 654x402 mm)
• Maximum Load: 80 kg (176 lbs)
• Movement: Fixed — no tilt or swivel
• Wall Clearance: 30 mm (1.2 in)
• Stud Spacing Supported: 406 mm, 450 mm or 600 mm
• Material: 1.8 mm cold-rolled steel, powder-coated
• Testing: Strength tested 4x
• In the Box: Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Karachi, Lahore, and Islamabad that need a secure, properly sized fixed TV wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS01A-46F in Pakistan?

Touchscreens.com.pk supplies the VSYS VS01A-46F across Pakistan, including Karachi and Islamabad, with delivery and after-sales support included.

What size and weight of display does the VSYS VS01A-46F support?

It is rated for flat or curved screens from 37" to 86" weighing up to 80 kg (176 lbs). The arms and wall plate are 1.8 mm cold-rolled steel and the design is strength tested four times, which gives a comfortable margin on heavy commercial panels.

What VESA patterns does the VSYS VS01A-46F fit?

It covers VESA patterns from 50x50 mm up to 600x400 mm, with a maximum mounting-hole spread of 654x402 mm. Check the four hole positions on the back of your panel, or send us the model number and we will confirm the fit.

Does the VSYS VS01A-46F tilt or swivel?

No. This is a fixed mount, designed to hold the display flush and stationary for a permanent installation. If you need downward tilt or a full-motion arm, ask our team and we will point you to the right VSYS model instead.

How far from the wall does the VSYS VS01A-46F hold the display?

The mount has a 30 mm (1.2 in) profile, so the screen sits close to the wall. The open backplate still leaves room for a socket outlet, concealed cabling and airflow behind the panel — allow for that when you set out the wall boxes.

What is the price of the VSYS VS01A-46F?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

What is included with the VSYS VS01A-46F?

Each unit ships with the wall plate, the bracket arms, a mounting hardware kit for solid-wall or dual-stud fixing, a hook-on bubble level and printed installation instructions. Fixings for unusual wall build-ups can be added on request.

Do you install the VSYS VS01A-46F on site and deliver outside major cities?

Yes. Our technicians handle wall fixing and safe display mounting for teams in Rawalpindi and Faisalabad, and we deliver nationwide from our Pakistan warehouse with regular dispatches to Peshawar and Multan.

Can you supply the VSYS VS01A-46F for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.

What warranty and local support come with the VSYS VS01A-46F?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Request a quote for the VSYS VS01A-46F Heavy-Duty Fixed Wall Mount for 37"–86" Displays, 80 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
