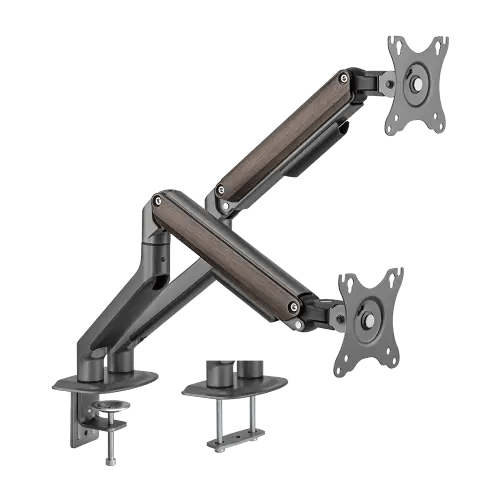

VSYS VMAE-C024 Spring-Assisted Dual Monitor Arm for 17"–32" Monitors, 9 kg per Screen

The VSYS VMAE-C024 is a spring-assisted dual monitor arm from VSYS carrying two 17" to 32" screens of up to 9 kg each from a single desk base, supplied across Pakistan by Touchscreens.com.pk.

Two-screen desks fail for a predictable reason: the monitors are rarely a matched pair. One is newer, heavier and taller than the other, the bezels never line up, and the user ends up turning their head at a different angle for each screen all day. The VMAE-C024 fixes that by giving each arm its own spring tension and its own height, so two unequal monitors can be brought into one straight visual line.

Built by VSYS, both arms mount to a single clamp or grommet base, which halves the desk-edge hardware compared with fitting two separate single arms. Each side moves through the same range independently — up to 453 mm of reach and 133 mm to 428 mm of height — and each has its own rotation stop so the two screens cannot swing into each other or into the partition behind them.

Key features

• Two independent arms on one shared desk base — a single clamp point instead of two
• Separate spring tension per arm, each tuned across 2–9 kg, so mismatched monitors both stay balanced
• Each screen adjusts for height, tilt, swivel and depth on its own and holds where it is left
• Independent height means two different-sized panels can be aligned to one eye-level sightline
• Tilt ±55°, swivel ±90° and ±180° rotation on each arm, with per-arm rotation stops that protect the neighbouring screen
• 453 mm of reach and 133 mm to 428 mm of height range per arm
• Quick-release joints on both arms for faster fitting and a smaller shipping carton on volume orders
• Cable routing along each arm keeps a two-monitor desk from becoming a cable nest
• Desk clamp for 10–80 mm desktops and grommet mount for 10–40 mm both included
• Steel and aluminium, powder coated, RoHS compliant, in Space Grey, Matte Silver or Space Grey with wood

Specifications

• Model: VSYS VMAE-C024
• Accessory Type: Monitor Arm
• Configuration: Dual screen, two arms on one base
• Mounting Type: Desk clamp or grommet mount
• Display Compatibility: 17" – 32" per screen
• VESA Pattern: 75x75 mm and 100x100 mm
• Load Capacity: 2 kg – 9 kg per screen
• Height Range: 133 mm – 428 mm per arm
• Extension: Up to 453 mm per arm
• Tilt Range: ±55° per arm
• Swivel: ±90° per arm
• Rotation: ±180° per arm, each with a rotation stop
• Counterbalance: Independent self-adjusting spring per arm
• Desk Clamp: Fits desktops 10–80 mm thick
• Grommet Mount: Fits desktops 10–40 mm thick
• Material: Steel and aluminium, powder coated
• Finishes: Space Grey, Matte Silver, Space Grey and wood
• Compliance: RoHS compliant
• In the box: Both arms, two detachable VESA plates, desk clamp, grommet mount, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Karachi, Rawalpindi, and Multan that need a secure, properly sized dual monitor arm for their desktop screens — typically finance and accounts teams reconciling two windows, dispatch and logistics desks, NOC and CCTV monitoring stations, engineering and CAD workstations running reference alongside drawings, and university labs standardising on two screens per seat.

Frequently asked questions

Where can I buy the VSYS VMAE-C024 in Pakistan?

Touchscreens.com.pk supplies the VSYS VMAE-C024 across Pakistan, including Karachi and Rawalpindi, with delivery and after-sales support included.

Can the VSYS VMAE-C024 hold two different monitors?

Yes, and that is the main reason to choose it. Each arm has its own spring tension setting across 2–9 kg and its own height, so a heavier newer panel on one side and an older lighter one on the other can still be levelled into a single sightline.

Do both screens mount to one base on the VSYS VMAE-C024?

Yes. Both arms attach to a single clamp or grommet base, so only one point of the desk edge is occupied — tidier and cheaper to fit than two separate single arms.

What monitor sizes and weights does the VSYS VMAE-C024 support?

Two screens between 17" and 32", each weighing 2 kg to 9 kg, on 75x75 mm or 100x100 mm VESA patterns. Curved panels are fine within those limits.

Can the two arms on the VSYS VMAE-C024 be set to different heights?

Yes, entirely independently. Each arm covers 133 mm to 428 mm of height and up to 453 mm of reach, so one screen can sit slightly lower or further forward if that is how you work.

Can one of the screens be turned to portrait?

Yes. Each arm rotates ±180°, so running one monitor landscape and the second in portrait — common on code, ledger and document-review desks — is straightforward.

What stops the two screens colliding on the VSYS VMAE-C024?

Each arm has its own built-in rotation stop, which limits the swing so the panels cannot hit each other, the wall or a glass partition when someone swings a screen across.

What is included with the VSYS VMAE-C024?

Both arms, two detachable VESA plates, a desk clamp, a grommet mount and printed installation instructions — nothing extra needs to be bought for a standard desk.

Can you supply the VSYS VMAE-C024 for bulk orders or government tenders?

Yes, we regularly supply schools, universities and enterprises with bulk orders and support tender documentation, compliance certificates and staged delivery — useful when a whole floor is moving to two screens per desk.

What warranty and local support come with the VSYS VMAE-C024?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
