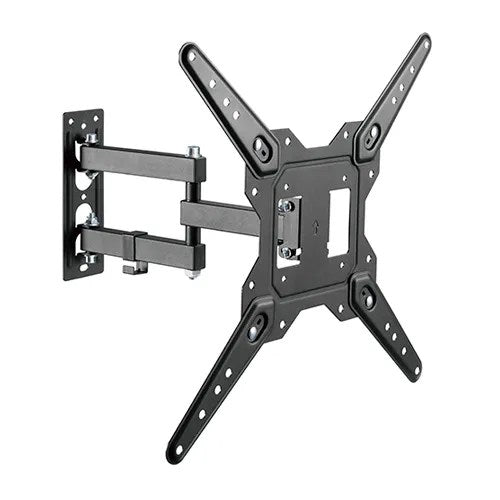

VSYS VS02E-443 Full-Motion Wall Mount for 23"–65" Displays, 30 kg

The VSYS VS02E-443 is a full-motion articulating wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a full-motion wall mount, it answers the rooms where one fixed viewing angle never works — a huddle room with people either side of the table, a reception counter where staff turn the screen towards a visitor, a training room with seating off to one side. The folding arm carries 23" to 65" panels up to 30 kg and swings them where they are needed.

Built by VSYS, the VS02E-443 folds back to 60 mm off the wall so the display reads as flush-mounted when nobody is moving it, then extends to 382 mm and swivels 90 degrees each way. Powder-coated steel, load tested to three times its rated capacity, with cable clips along the arm that keep HDMI and power leads controlled through the whole travel.

Key features

• Articulating arm extends from 60 mm folded out to 382 mm from the wall
• Swivels plus 90 to minus 90 degrees and tilts plus 3 to minus 10 degrees for glare-free viewing
• Carries flat or curved screens from 23" to 65" weighing up to 30 kg
• VESA support from 100x100 mm to 400x400 mm covers most panels in this size class
• Powder-coated steel construction, load tested to three times the rated capacity
• Cable clips along the arm keep signal and power leads tidy through the full range of motion
• Fixes to a single stud or solid wall, with a direction indicator to speed up alignment
• Full-motion wall mount built for commercial interactive displays and TVs
• Manufactured by VSYS for reliable everyday use

Specifications

• Model: VSYS VS02E-443
• Accessory Type: TV Wall Mount
• Mounting Type: Wall Mount, full motion
• Display Compatibility: 23" – 65", flat or curved
• VESA Pattern: 100x100 mm to 400x400 mm
• Maximum Load: 30 kg
• Tilt Range: +3° to -10°
• Swivel Range: +90° to -90°
• Extension Range: 60 mm folded to 382 mm extended
• Material: Powder-coated steel
• Testing: Load tested to 3x rated capacity
• Cable Management: Cable clips along the arm
• In the Box: Full-motion arm, wall plate, mounting hardware bag, direction indicator, printed installation guide
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Faisalabad, Islamabad, and Quetta that need a secure, properly sized full-motion wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS02E-443 in Pakistan?

Touchscreens.com.pk supplies the VSYS VS02E-443 across Pakistan, including Faisalabad and Islamabad, with delivery and after-sales support included.

How far does the VSYS VS02E-443 extend and swivel?

The arm folds to 60 mm from the wall and pulls out to 382 mm. From there it swivels plus 90 to minus 90 degrees and tilts plus 3 to minus 10 degrees, so a screen can be aimed at either side of a room or angled down out of a window reflection.

What size and weight of display does the VSYS VS02E-443 support?

Flat or curved screens from 23" to 65" weighing up to 30 kg. The bracket is powder-coated steel and has been load tested to three times that rating, so it has real margin at its published limit.

What VESA patterns does the VSYS VS02E-443 fit?

From 100x100 mm up to 400x400 mm, which covers most 23" to 65" displays sold today including curved models. Check the hole spacing on the rear of your panel or send us the model number.

What wall does the VSYS VS02E-443 need?

It fixes to a single timber stud or to solid masonry using the supplied wall plate and hardware. On hollow or partition walls tell us the build-up and we will specify the correct anchors with your quotation.

What is the price of the VSYS VS02E-443?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

What is included with the VSYS VS02E-443?

The full-motion arm, wall plate, a mounting hardware bag, a direction indicator for alignment and a printed installation guide.

Do you install the VSYS VS02E-443 on site and deliver outside major cities?

Yes. Our technicians handle wall fixing and cable routing for teams in Karachi and Multan, and we deliver nationwide from our Pakistan warehouse with regular runs to Peshawar and Quetta.

Can you supply the VSYS VS02E-443 for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.

What warranty and local support come with the VSYS VS02E-443?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
