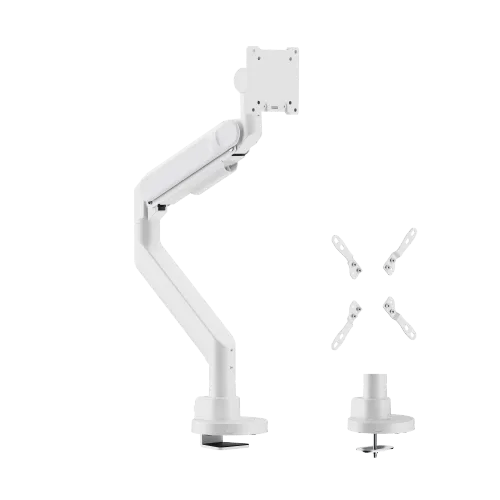

VSYS VMAD-C012 Heavy-Duty Gas-Spring Monitor Arm for 24"–57" Monitors, 27 kg

The VSYS VMAD-C012 is a heavy-duty gas-spring monitor arm from VSYS for large and ultrawide displays of 24" to 57" weighing up to 27 kg, supplied across Pakistan by Touchscreens.com.pk.

As a desk mount this is the model for screens that ordinary arms simply refuse. A 49" ultrawide or a large curved 4K panel can weigh three times what a mechanical-spring arm is rated for, and its mounting holes are frequently 200x200 mm rather than 100x100 mm. The VMAD-C012 is engineered around both realities — 27 kg for flat panels, 22 kg for curved, and VESA patterns out to 200x200 mm.

Built by VSYS, it uses an internal gas spring rather than a coil, which gives smooth fingertip travel through a tall 370 mm to 660 mm height band without the screen creeping down under its own mass. The VESA plate detaches so the bracket goes onto the monitor first and the whole display clicks onto the arm afterwards — which is what makes hanging a 20 kg screen a one-person job rather than a two-person one.

Key features

• Gas-spring mechanism rated 2–27 kg for flat panels and 2–22 kg for curved, well beyond standard desk arms
• Fits displays from 24" to 57", including ultrawide and curved formats
• Tall height band from 370 mm to 660 mm, so a large screen can be raised properly rather than just tilted
• Tilt +60° to -20°, swivel ±90° and rotation ±90° for full-motion positioning
• Wide VESA support — 75x75, 100x100, 100x200, 200x100 and 200x200 mm
• Detachable VESA plate makes mounting a heavy panel a single-person task
• Integrated rotation stop keeps a large screen from swinging into a wall, partition or second monitor
• Desk clamp for 10–45 mm desktops and grommet mount for 10–40 mm supplied, with cable management built in
• Steel and aluminium construction, powder coated, RoHS compliant, in Matte Black or Matte White

Specifications

• Model: VSYS VMAD-C012
• Accessory Type: Monitor Arm, heavy duty
• Configuration: Single screen
• Mounting Type: Desk clamp or grommet mount
• Display Compatibility: 24" – 57", including ultrawide and curved
• VESA Pattern: 75x75, 100x100, 100x200, 200x100 and 200x200 mm
• Load Capacity: 2–27 kg flat panels, 2–22 kg curved panels
• Height Range: 370 mm – 660 mm
• Tilt Range: +60° to -20°
• Swivel: ±90°
• Rotation: ±90°, with an integrated rotation stop
• Counterbalance: Internal gas spring, tension adjustable to the screen
• Desk Clamp: Fits desktops 10–45 mm thick
• Grommet Mount: Fits desktops 10–40 mm thick
• Cable Management: Integrated channel along the arm
• Material: Steel and aluminium, powder coated
• Finishes: Matte Black, Matte White
• Compliance: RoHS compliant
• In the box: Gas-spring arm, detachable VESA plate, desk clamp, grommet mount, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Peshawar, and Lahore that need a secure, properly sized heavy-duty monitor arm for their large desktop display — in practice engineering and CAD workstations, architecture and design studios, video editing and broadcast suites, NOC, SOC and CCTV monitoring positions, and executive desks running a single large curved screen.

Frequently asked questions

Where can I buy the VSYS VMAD-C012 in Pakistan?

Touchscreens.com.pk supplies the VSYS VMAD-C012 across Pakistan, including Islamabad and Peshawar, with delivery and after-sales support included.

What size and weight of monitor does the VSYS VMAD-C012 carry?

Displays from 24" up to 57", weighing up to 27 kg if flat or up to 22 kg if curved. Curved panels are rated lower because their mass sits further from the mounting plate.

How is a gas spring different from the spring in a standard monitor arm?

A gas cylinder delivers a much higher and more consistent lifting force than a coil spring of the same size. That is what lets this arm hold a 27 kg screen through a 370 mm to 660 mm height range without the display slowly sinking.

Will the VSYS VMAD-C012 fit a 49" ultrawide monitor?

Yes, provided the panel is inside the weight limits and uses one of the supported VESA patterns — up to 200x200 mm. Send us the model number and we will check both against the manufacturer datasheet.

What VESA patterns does the VSYS VMAD-C012 support?

75x75, 100x100, 100x200, 200x100 and 200x200 mm, which covers the wider hole spacings large monitors typically use.

How much does the VSYS VMAD-C012 tilt and swivel?

Tilt runs from +60° to -20°, swivel is ±90° and rotation is ±90°. Note that rotation is 90 degrees rather than 180 — on a 49" ultrawide, full portrait is rarely practical anyway.

Can one person install the VSYS VMAD-C012?

Yes. The VESA plate detaches, so the bracket is bolted to the monitor while it is still lying on the desk, then the whole screen clicks onto the arm. Fit it to a sturdy desk and follow the supplied torque guidance.

What desks does the VSYS VMAD-C012 fit?

The clamp takes desktops from 10 mm to 45 mm thick and the grommet mount 10 mm to 40 mm. Both are in the box. On glass or thin laminate desks, check the desk's own load rating before fitting a 27 kg screen.

Can you supply the VSYS VMAD-C012 for bulk orders or government tenders?

Yes, we regularly supply schools, universities and enterprises with bulk orders and support tender documentation, compliance certificates and staged delivery.

What warranty and local support come with the VSYS VMAD-C012?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
