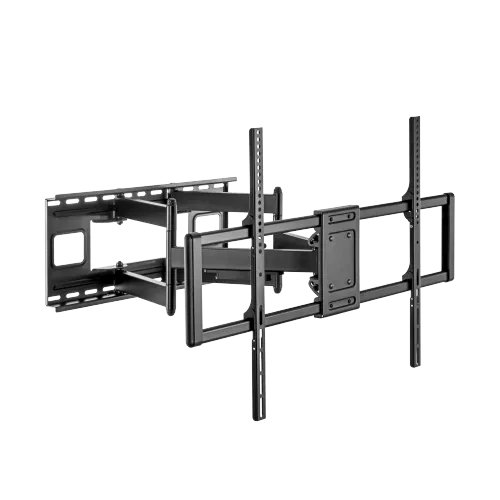

VSYS VS02D-696 Heavy-Duty Full-Motion Wall Mount for 60"–120" Displays, 120 kg
The VSYS VS02D-696 is a heavy-duty full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a heavy-duty full-motion wall mount, it is the top of the articulating range — 60" to 120" panels, 120 kg, and a VESA window that reaches 900x600 mm. The arm pulls...
- FITS
- 60" - 120"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS02D-696 is a heavy-duty full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a heavy-duty full-motion wall mount, it is the top of the articulating range — 60" to 120" panels, 120 kg, and a VESA window that reaches 900x600 mm. The arm pulls the display 703 mm clear of the wall, which is what a command room or a wide boardroom needs when one screen has to serve viewing zones that a fixed bracket could never cover.
Built by VSYS, the VS02D-696 uses powder-coated steel throughout and is strength tested to three times its rated load. A quick-release latch holds the panel on the arm and frees it again for servicing without touching the wall bracket. The screen free-tilts plus 5 to minus 15 degrees, swivels 60 degrees either way, and levels through plus 5 to minus 5 degrees.
Key features
- Carries 60" to 120" flat or curved displays weighing up to 120 kg
- Long-reach arm travels from 75 mm folded to 703 mm extended
- Free-tilting screen plus 5 to minus 15 degrees, swivel plus 60 to minus 60 degrees
- Independent levelling adjustment of plus 5 to minus 5 degrees
- Quick-release latch locks and frees the panel without disturbing the wall bracket
- Large-format VESA support from 200x200 mm to 900x600 mm, maximum hole spread 910x610 mm
- Powder-coated steel construction, strength tested to three times the rated load
- Heavy-duty full-motion wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VS02D-696
- Accessory Type: TV Wall Mount
- Mounting Type: Wall Mount, heavy-duty full motion
- Display Compatibility: 60" – 120", flat or curved
- VESA Pattern: 200x200 mm to 900x600 mm (maximum hole spread 910x610 mm)
- Maximum Load: 120 kg
- Tilt Range: +5° to -15°, free-tilting
- Swivel Range: +60° to -60°
- Screen Levelling: +5° to -5°, independent adjustment
- Extension Range: 75 mm folded to 703 mm extended
- Wall Plate: Dual stud at 406 mm, 450 mm or 600 mm spacing, or solid concrete and block
- Material: Powder-coated steel
- Testing: Strength tested to 3x rated load
- Quick Release: Latch for tool-free display removal
- In the Box: Heavy-duty full-motion arm, dual-stud wall plate, heavy-duty hardware bag, hook-on bubble level, printed installation guide
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Rawalpindi, and Lahore that need a secure, properly sized heavy-duty full-motion wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS02D-696 in Pakistan?
Touchscreens.com.pk supplies the VSYS VS02D-696 across Pakistan, including Islamabad and Lahore, with delivery and after-sales support included.
What size and weight of display does the VSYS VS02D-696 support?
Flat or curved panels from 60" to 120" weighing up to 120 kg — the heaviest rating in the VSYS articulating range. The powder-coated steel structure is strength tested to three times that figure.
How far does the VSYS VS02D-696 extend?
From 75 mm folded to 703 mm fully out. That reach is what makes it viable in wide boardrooms and control rooms where the screen has to come away from the wall and turn to face a second viewing zone.
What is the quick-release latch on the VSYS VS02D-696 for?
It locks the panel onto the arm and releases it again for cleaning, servicing or swapping the display, without unbolting the wall bracket or disturbing the alignment you set at installation.
What VESA patterns does the VSYS VS02D-696 fit?
From 200x200 mm up to 900x600 mm, with a maximum hole spread of 910x610 mm. That covers the large commercial panels and interactive flat panels used in Pakistani boardrooms and lecture halls.
What is the price of the VSYS VS02D-696?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VS02D-696?
The heavy-duty arm, the dual-stud wall plate, a heavy-duty hardware bag, a hook-on bubble level and a printed installation guide.
What wall does the VSYS VS02D-696 need?
Two studs at 406 mm, 450 mm or 600 mm centres, or solid concrete or block. With 120 kg on a 703 mm arm the wall substrate matters as much as the bracket, so we will review it with you before quoting.
Do you install the VSYS VS02D-696 on site and deliver outside major cities?
Yes, and at this size we strongly recommend it. Our technicians cover Karachi and Faisalabad directly, and we deliver nationwide from our Pakistan warehouse.
What warranty and local support come with the VSYS VS02D-696?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
