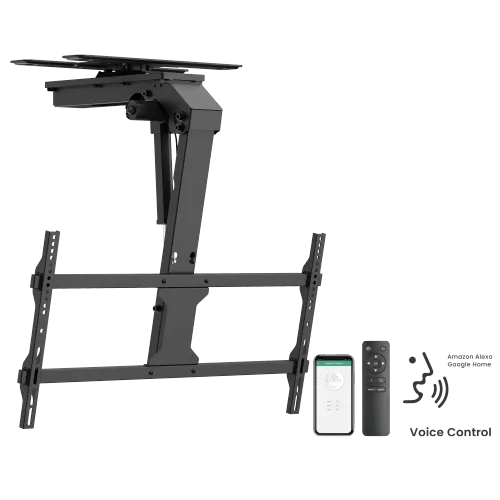

VSYS VCM-M0748DS Motorized Flip-Down Ceiling Mount for 43"–86" Displays, 45 kg

The VSYS VCM-M0748DS is a motorized flip-down ceiling mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a ceiling mount, it is for the rooms where there is no usable wall — glazed elevations, open-plan training floors, retail units with block-work on three sides. An electric push-rod motor drives a 43" to 86" panel through 0 to minus 75 degrees of tilt and 90 degrees of swivel either way, then folds the whole screen up flat against the ceiling when the session ends.

Built by VSYS, the VCM-M0748DS is operated three ways: the RF remote in the box, the Tuya app, or a voice command through Alexa or Google Home. A collision-avoidance sensor stops the swivel if something gets in the path. The head carries 45 kg, drops 177 mm from the slab, and the whole assembly is strength tested to four times its rating.

Key features

• Motorized tilt from 0 to minus 75 degrees and swivel from plus 90 to minus 90 degrees
• Flip-down foldable design stows the screen against the ceiling to free up headroom
• Three control routes — RF remote, Tuya smartphone app, or Alexa and Google Home voice commands
• Collision-avoidance system halts the motor if an obstacle enters the swivel path
• Carries 43" to 86" displays up to 45 kg on VESA patterns from 200x100 mm to 800x400 mm
• Screen levelling adjustment of plus 2 to minus 2 degrees for a square picture
• Certified to CE, ErP, EU Cybersecurity, FCC and RoHS, strength tested to four times the rated load
• Fixes to a solid ceiling or dual joists at 406 mm spacing, 177 mm drop
• Motorized ceiling mount built for commercial interactive displays and TVs

Specifications

• Model: VSYS VCM-M0748DS
• Accessory Type: Ceiling Mount
• Mounting Type: Ceiling Mount, motorized flip-down
• Display Compatibility: 43" – 86", flat or curved
• VESA Pattern: 200x100 mm to 800x400 mm
• Maximum Load: 45 kg
• Motorized Tilt: 0° to -75°
• Motorized Swivel: +90° to -90°
• Screen Levelling: +2° to -2°
• Ceiling Drop: 177 mm
• Control: RF remote, Tuya app, Amazon Alexa and Google Home voice
• Safety: Collision-avoidance sensor on the swivel
• Power: 100-240 V AC via 3 m power cord
• Ceiling Fixing: Solid ceiling or dual joists at 406 mm spacing
• Material: Steel, plastic and aluminium
• Certifications: CE, ErP, EU Cybersecurity, FCC, RoHS, strength tested to 4x rated load
• In the Box: Motorized ceiling mount, ceiling plate, RF remote control, mounting hardware bag, power cord, printed installation guide
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Karachi, and Quetta that need a secure, properly sized motorized ceiling mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VCM-M0748DS in Pakistan?

Touchscreens.com.pk supplies the VSYS VCM-M0748DS across Pakistan, including Islamabad and Karachi, with delivery and after-sales support included.

How is the VSYS VCM-M0748DS controlled?

Three ways. The RF remote ships in the box, the Tuya app runs on a phone once the mount is on your network, and Amazon Alexa or Google Home will take voice commands. Most sites use the remote day to day and the app for scheduled positions.

How far does the VSYS VCM-M0748DS tilt and swivel?

The motor drives tilt from 0 to minus 75 degrees and swivel from plus 90 to minus 90 degrees, with a further plus 2 to minus 2 degree levelling adjustment for squaring the picture.

What does the flip-down design on the VSYS VCM-M0748DS do?

It folds the screen up flat against the ceiling when nobody is using it, which returns the headroom to the room — useful in a classroom or a multi-purpose hall that has to be cleared between sessions.

What happens if something gets in the way while the VSYS VCM-M0748DS is moving?

A collision-avoidance sensor detects the obstruction and stops the motor, protecting both the panel and whatever is in its path.

Does the VSYS VCM-M0748DS need a power supply at the ceiling?

Yes. The motor runs on 100-240 V AC through the supplied 3 m cord, so a socket or fused spur must be available at or near the mounting point. Plan this into the electrical first fix.

What size and weight of display does the VSYS VCM-M0748DS support?

Flat or curved panels from 43" to 86" weighing up to 45 kg, on VESA patterns from 200x100 mm to 800x400 mm. The assembly is strength tested to four times its rating.

What is the price of the VSYS VCM-M0748DS?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

Do you install the VSYS VCM-M0748DS on site and deliver outside major cities?

Yes, and for a powered ceiling mount we strongly recommend it. Our technicians handle the slab or joist fixing and the power connection for teams in Lahore and Multan, and we deliver nationwide from our Pakistan warehouse.

What warranty and local support come with the VSYS VCM-M0748DS?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
