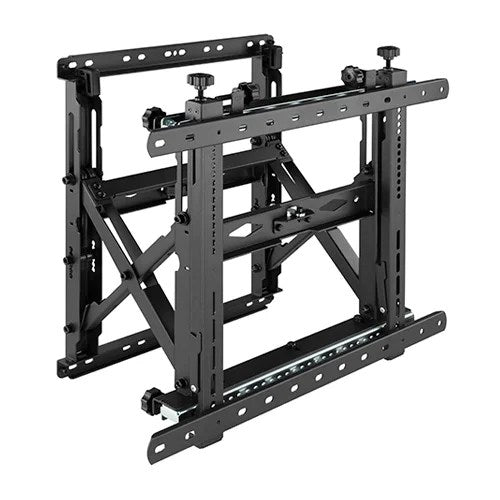

VSYS VSVW13-46T Modular Push-Pull Video Wall Mount for 45"–70" Displays, 70 kg

The VSYS VSVW13-46T is a modular push-pull video wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a video wall mount, it is designed around the reality that arrays get built once and serviced for years. Each 45" to 70" panel pops out on a push-pull lock system to anywhere between 120 mm and 325 mm from the wall, so a technician can work behind a single screen while the rest of the wall stays untouched, then push it back flush.

Built by VSYS, the VSVW13-46T is a modular system — rows and columns extend as far as the wall allows, in portrait or landscape. Micro-adjustment gives 13.5 mm of depth and 13 mm of height per panel, which is how a large array ends up with even seams. The bracket arm is 2 mm cold-rolled steel on a 2.5 mm wall plate, rated to 70 kg.

Key features

• Push-pull pop-out lock system with 120 mm to 325 mm of clearance for rear cable access
• Micro-adjustment of 13.5 mm in depth and 13 mm in height for seam-accurate panel alignment
• Mounts displays in portrait or landscape for flexible video wall and signage layouts
• Modular design extends across unlimited rows and columns as the installation grows
• Rated to 70 kg (154 lbs) on a 2 mm steel bracket arm and 2.5 mm steel wall plate
• Toolless tilt of plus 2 to minus 3 degrees to fine-tune the face of the array
• Anti-theft locking design for public-facing retail, transport and lobby installations
• Fine-texture black powder coating, strength tested four times
• Modular video wall mount built for commercial interactive displays and TVs

Specifications

• Model: VSYS VSVW13-46T
• Accessory Type: Video Wall Mount
• Mounting Type: Wall Mount, modular push-pull pop-out
• Display Compatibility: 45" – 70"
• VESA Pattern: 200x200 mm to 600x400 mm (maximum hole spread 604x405 mm)
• Maximum Load: 70 kg (154 lbs)
• Wall Clearance: 120 mm retracted to 325 mm extended
• Tilt Range: +2° to -3°, toolless
• Orientation: Portrait or landscape
• Micro-Adjustment: 13.5 mm depth, 13 mm height
• Security: Anti-theft locking design
• Material: 2 mm cold-rolled steel bracket arm, 2.5 mm steel wall plate, fine-texture black powder coating
• Testing: Strength tested 4x
• In the Box: Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Faisalabad, Multan, and Rawalpindi that need a secure, properly sized modular video wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VSVW13-46T in Pakistan?

Touchscreens.com.pk supplies the VSYS VSVW13-46T across Pakistan, including Faisalabad and Rawalpindi, with delivery and after-sales support included.

How does the pop-out lock system on the VSYS VSVW13-46T work?

A push or a pull on the panel releases it, and the arm carries it out to anywhere between 120 mm and 325 mm from the wall for rear access. Push it back and the lock catches at the retracted position, restoring the flush face of the array.

Can the VSYS VSVW13-46T be used in portrait orientation?

Yes. It mounts panels in either portrait or landscape, so a single bracket model covers a mixed layout — useful when a project runs a landscape wall in one area and portrait signage in another.

How precisely can panels be aligned with the VSYS VSVW13-46T?

Micro-adjustment gives 13.5 mm of travel in depth and 13 mm in height on each mount, which is what lets a large array come out with consistent seams instead of visible steps between screens.

What size and weight of display does the VSYS VSVW13-46T support?

Panels from 45" to 70" weighing up to 70 kg (154 lbs), on a 2 mm cold-rolled steel bracket arm and a 2.5 mm steel wall plate that is strength tested four times.

What VESA patterns does the VSYS VSVW13-46T fit?

Up to 600x400 mm, with a maximum mounting-hole spread of 604x405 mm. Send us the panel model before you order for a full array and we will confirm the pattern.

What is the price of the VSYS VSVW13-46T?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

What is included with the VSYS VSVW13-46T?

The wall plate, the pop-out bracket arms, a full mounting hardware kit, the anti-theft lock fitting and printed installation instructions. One kit is required per screen in the array.

Do you install the VSYS VSVW13-46T on site and deliver outside major cities?

Yes. Our technicians set out and commission full arrays for teams in Karachi and Peshawar, and we deliver nationwide from our Pakistan warehouse.

Can you supply the VSYS VSVW13-46T for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
