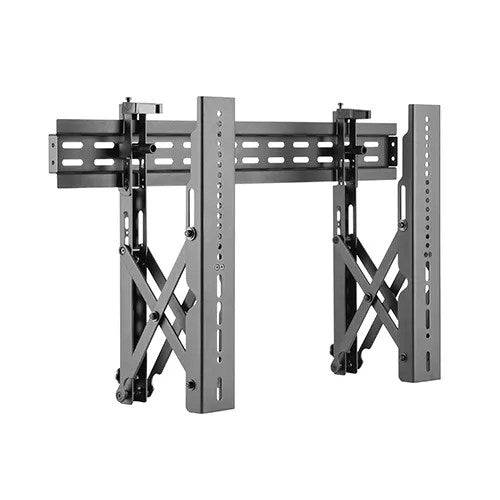

VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount for 37"–70" Displays, 45 kg
The VSYS VSVW02-46T is a push-pull pop-out video wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a video wall mount, it solves the maintenance problem that kills tight multi-screen arrays: once panels sit shoulder to shoulder there is no way to reach the cabling behind them....
- FITS
- 37" - 70"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VSVW02-46T is a push-pull pop-out video wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a video wall mount, it solves the maintenance problem that kills tight multi-screen arrays: once panels sit shoulder to shoulder there is no way to reach the cabling behind them. Press the face of a 37" to 70" screen on this bracket and the pop-out mechanism releases it 215 mm clear of the wall, giving a technician full rear access without dismantling the array.
Built by VSYS, the VSVW02-46T pushes back to a 68 mm retracted profile and quick-locks there. Lateral shift brackets and a levelling adjustment let each panel be aligned to its neighbours to the millimetre, a toolless plus 3 to minus 3 degree tilt squares the face of the array, and an anti-theft locking hole covers public-facing installations.
Key features
- Push-pull pop-out mechanism extends the display 215 mm for full rear cable access
- Retracts and quick-locks to a slim 68 mm profile for a tight video wall face
- Lateral shift brackets align each panel precisely against its neighbours in the array
- Levelling adjustment and toolless plus 3 to minus 3 degree tilt square up the screen after fixing
- Anti-theft locking hole for public-facing retail, transport and lobby installations
- Rated to 45 kg (99 lbs) on 2 mm to 2.5 mm cold-rolled steel, strength tested four times
- VESA support from 200x200 mm to 600x400 mm covers most 37" to 70" signage panels
- Pop-out video wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VSVW02-46T
- Accessory Type: Video Wall Mount
- Mounting Type: Wall Mount, push-pull pop-out
- Display Compatibility: 37" – 70"
- VESA Pattern: 200x200 mm to 600x400 mm
- Maximum Load: 45 kg (99 lbs)
- Pop-Out Travel: 68 mm retracted to 215 mm extended
- Tilt Range: +3° to -3°, toolless
- Alignment: Lateral shift brackets and levelling adjustment
- Security: Anti-theft locking hole
- Material: 2 mm to 2.5 mm cold-rolled steel, powder-coated black
- Testing: Strength tested 4x
- In the Box: Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed installation instructions
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Lahore, Karachi, and Peshawar that need a secure, properly sized pop-out video wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VSVW02-46T in Pakistan?
Touchscreens.com.pk supplies the VSYS VSVW02-46T across Pakistan, including Lahore and Karachi, with delivery and after-sales support included.
How does the pop-out mechanism on the VSYS VSVW02-46T work?
Press the panel and the mechanism releases, walking the screen 215 mm out from the wall so a technician can reach connectors and power behind it. Push it back and the quick-lock catches at the 68 mm retracted position. No tools, no removing neighbouring screens.
Can panels be aligned to each other in an array with the VSYS VSVW02-46T?
Yes, that is what the lateral shift brackets and levelling adjustment are for. Each screen can be nudged sideways and squared up independently so the seams between panels stay even across the whole wall.
What size and weight of display does the VSYS VSVW02-46T support?
Panels from 37" to 70" weighing up to 45 kg (99 lbs), on brackets pressed from 2 mm to 2.5 mm cold-rolled steel and strength tested four times.
What VESA patterns does the VSYS VSVW02-46T fit?
From 200x200 mm to 600x400 mm, which covers most commercial signage panels in this size band. Send us the display model and we will confirm before you order for a whole array.
Is the VSYS VSVW02-46T secure enough for a public area?
It has an anti-theft locking hole and ships with a lock fitting, which is why it is specified for mall concourses, transport halls and unattended lobby walls.
What is the price of the VSYS VSVW02-46T?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VSVW02-46T?
The wall plate, the pop-out bracket arms, a full mounting hardware kit, the anti-theft lock fitting and printed installation instructions.
Do you install the VSYS VSVW02-46T on site and deliver outside major cities?
Yes. Video walls need setting out properly, so our technicians handle the array layout and alignment for teams in Islamabad and Faisalabad, and we deliver nationwide from our Pakistan warehouse.
Can you supply the VSYS VSVW02-46T for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
Request a quote for the VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount for 37"–70" Displays, 45 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, printed installation instructions
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
