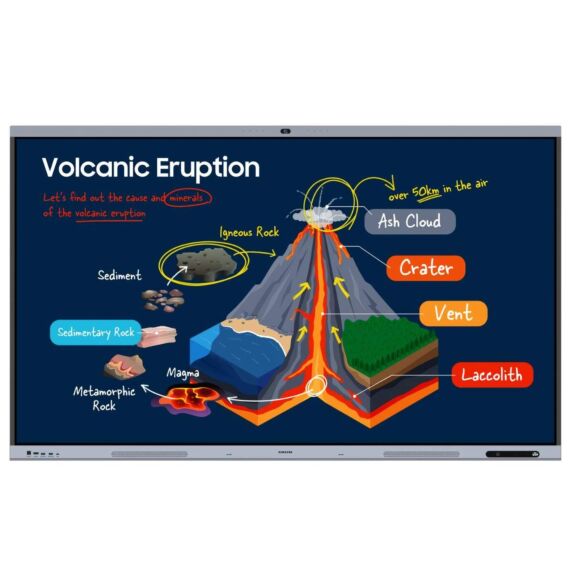

Samsung WA86FX-P | 86-Inch Interactive Touchscreen Display for Business

The Samsung WA86FX-P is an 86-inch 4K UHD interactive touchscreen built for business and education, supplied across Pakistan by Touchscreens.com.pk.

Running Android 15 with 16GB RAM and 128GB of onboard storage, the WA86FX-P is fast enough to run apps, browsers and whiteboarding software directly on the panel, without a separate PC. Infrared touch supports up to 50 simultaneous touch points with 8ms response time, so classrooms in Lahore and Islamabad and boardrooms across Pakistan get natural, lag-free writing and multi-user collaboration.

Built-in Wi-Fi 6, Bluetooth, a built-in camera and microphones make the panel ready for hybrid meetings and video conferencing out of the box, while the OPS PC slot leaves room to add a Windows compute module later. Touchscreens.com.pk delivers, installs and supports the WA86FX-P for offices, schools and universities in Faisalabad and Karachi.

Key features

• 86-inch 4K UHD display with 400 nits brightness and 178° wide viewing angle
• Infrared touch with up to 50 simultaneous touch points and 8ms response time
• Android 15 with 16GB RAM and 128GB storage for smooth on-panel apps
• Built-in Wi-Fi 6, Bluetooth, camera and microphones for video conferencing
• OPS PC slot for adding a Windows compute module when needed
• Anti-glare, anti-reflection surface coating for classrooms and bright offices
• 2 x 10W built-in stereo speakers for clear in-room audio

Specifications

• Ambient light sensor: Eco sensor is present, which often includes ambient light detection to adjust screen behaviour
• Audio in: Yes
• Backlight: Direct LED backlight
• Brightness: 400 nits (cd/m²) typical brightness
• Colour depth: 1.07 billion colors (10-bit)
• Ethernet (RJ45): Yes, LAN port present
• Included cables: Standard HDMI/USB cables likely included; OPS slot optionally used
• Operating conditions: Operating temperature ~ 0-40 °C, humidity ~ 10-80 % non-condensing
• Operating system: Android 15
• Palm rejection: Implied
• Pen & touch: Dual Pen support (front/back nib) allowing use of two different pens/tools without switching settings.
• Power consumption: On mode: approx 493-529 W depending on region / variant; standby/sleep ~ 0.5 W
• Memory & storage: 16 GB RAM and 128 GB storage
• Refresh rate: 60 Hz
• Resolution: 4K UHD
• Screen size: 86"
• Sensors: Eco sensor included
• Shipping dimensions: Product (set) dimension approx 1961.8 × 1170 × 87.7 mm for the 86-inch size; weight ~ 60-62 kg (set)
• Speaker output: 2 × 10W built-in stereo speakers (20W total)
• Speaker type: Built-in, front-facing stereo speakers
• Surface protection: Anti-glare / anti-reflection coating; haze around 25%
• Touch accuracy: Highly accurate touch
• Touch points: Up to 50 simultaneous touch points
• Touch resolution: 4K UHD (3840 × 2160)
• Touch response time: 8 ms (Gray-to-Gray)
• Touch technology: Infrared
• Viewing angle: 178° (H/V) wide viewing angle
• Voice / conferencing: Built-in mics and conferencing features, voice capture is supported
• Wall mount / VESA: VESA mounting supported; mounting pattern ~ 600 × 400-mm for the 86-inch size
• Wi-Fi: Yes — includes Wi-Fi 6

Ideal for: Ideal for interactive classrooms, corporate boardrooms and hybrid meeting rooms in Lahore and Islamabad, and for enterprises and universities upgrading their meeting spaces across Pakistan.

Frequently asked questions

Where can I buy the Samsung WA86FX-P 86-Inch Interactive Display in Pakistan?

Touchscreens.com.pk supplies the Samsung WA86FX-P 86-Inch Interactive Display across Pakistan, including Lahore and Islamabad, with dispatch and after-sales support handled locally.

Is the price of the Samsung WA86FX-P 86-Inch Interactive Display listed online?

No — Touchscreens.com.pk works on a request-a-quote basis, so submit your requirements and our team will share tailored pricing for the Samsung WA86FX-P 86-Inch Interactive Display directly.

What operating system and specs does the Samsung WA86FX-P run?

It runs Android 15 with 16GB RAM and 128GB storage, letting you use apps, browsers and whiteboarding tools directly on the panel.

How many people can use the touchscreen at the same time?

The WA86FX-P supports up to 50 simultaneous touch points with 8ms response time, so multiple users can write and interact together.

Can I add a Windows PC to the Samsung WA86FX-P?

Yes, the panel has a built-in OPS PC slot, so Touchscreens.com.pk can supply and fit a compatible Windows OPS module for full desktop use in Pakistan.

Do you deliver the Samsung WA86FX-P 86-Inch Interactive Display beyond Lahore?

Yes, we deliver the Samsung WA86FX-P 86-Inch Interactive Display nationwide from our Pakistan operations, with regular dispatch to Faisalabad and Karachi and other cities on request.

Can Touchscreens.com.pk handle installation and setup for the Samsung WA86FX-P 86-Inch Interactive Display?

Yes, our technical team can arrange installation and basic orientation for the Samsung WA86FX-P 86-Inch Interactive Display in major Pakistani cities such as Lahore and Islamabad, on request.

What warranty applies to the Samsung WA86FX-P 86-Inch Interactive Display, and is local support available?

The Samsung WA86FX-P 86-Inch Interactive Display is covered by the manufacturer's standard warranty, and Touchscreens.com.pk provides local support and spares assistance across Pakistan.

Can you supply the Samsung WA86FX-P 86-Inch Interactive Display for bulk orders, schools or government tenders?

Yes, we regularly supply Samsung products for bulk and tender orders across Pakistan — share your quantities and specification sheet when requesting a quote.

Does the WA86FX-P support video conferencing out of the box?

Yes, it has a built-in camera, microphones and Wi-Fi 6/Bluetooth, so it is ready for video calls without extra hardware.
