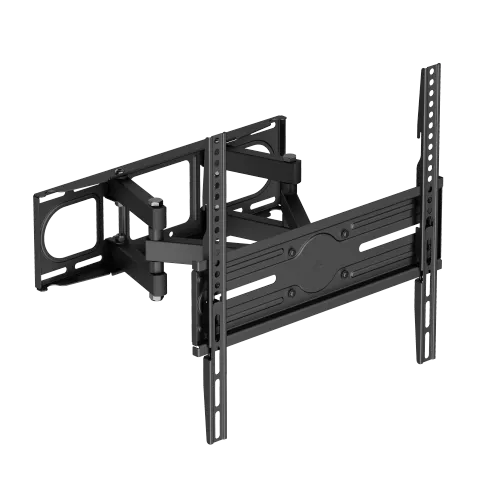

VSYS VS02SE-446 Full-Motion Wall Mount for 32"–75" Displays, 40 kg
The VSYS VS02SE-446 is a dual-stud full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a full-motion wall mount, its distinguishing feature is the wall plate: it spans two studs at 406 mm centres instead of hanging off one, which is what makes a 40 kg...
- FITS
- 32" - 75"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS02SE-446 is a dual-stud full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a full-motion wall mount, its distinguishing feature is the wall plate: it spans two studs at 406 mm centres instead of hanging off one, which is what makes a 40 kg panel on a 355 mm arm feel solid rather than nervous. Screens from 32" to 75" sit on it, and a separate levelling adjustment squares the picture after the bracket is already bolted up.
Built by VSYS, the VS02SE-446 combines steel with reinforced polymer at the joints and is strength tested to three times its rated load. Movement runs plus 3 to minus 15 degrees of tilt and 60 degrees of swivel each way, with integrated cable routing so the HDMI and mains leads follow the arm rather than dangling behind it.
Key features
- Dual-stud wall plate spans two studs at 406 mm centres for a stronger hold on larger panels
- Independent screen-levelling adjustment of plus 3 to minus 3 degrees, set after mounting
- Arm travels from 67 mm folded to 355 mm extended for corner and side-angle viewing
- Tilts plus 3 to minus 15 degrees and swivels plus 60 to minus 60 degrees
- Takes flat or curved screens from 32" to 75" up to 40 kg on VESA 100x100 mm to 400x400 mm
- Steel and reinforced plastic construction, strength tested to three times the rated load
- Integrated cable management and a hook-on bubble level for a straight first-time install
- Full-motion wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VS02SE-446
- Accessory Type: TV Wall Mount
- Mounting Type: Wall Mount, full motion
- Display Compatibility: 32" – 75", flat or curved
- VESA Pattern: 100x100 mm to 400x400 mm
- Maximum Load: 40 kg
- Tilt Range: +3° to -15°
- Swivel Range: +60° to -60°
- Screen Levelling: +3° to -3°, independent adjustment
- Extension Range: 67 mm folded to 355 mm extended
- Wall Plate: Dual stud at 406 mm spacing, also suits solid concrete or block
- Material: Steel and reinforced plastic
- Testing: Strength tested to 3x rated load
- In the Box: Full-motion arm, dual-stud wall plate, mounting hardware bag, hook-on bubble level, printed installation guide
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Rawalpindi, Peshawar, and Karachi that need a secure, properly sized full-motion wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS02SE-446 in Pakistan?
Touchscreens.com.pk supplies the VSYS VS02SE-446 across Pakistan, including Rawalpindi and Peshawar, with delivery and after-sales support included.
Does the VSYS VS02SE-446 need two wall studs?
The plate is designed to span two studs at 406 mm spacing, which is where it gets its extra holding strength. It also installs securely into solid concrete or block walls with the correct anchors, which is the more common case on Pakistani commercial sites.
How far does the VSYS VS02SE-446 extend and swivel?
From 67 mm folded out to 355 mm, with plus 60 to minus 60 degrees of swivel and plus 3 to minus 15 degrees of tilt — enough to serve two desk clusters or a wide seating spread from a single mounting point.
Can the picture be levelled after the VSYS VS02SE-446 is installed?
Yes. There is a dedicated plus 3 to minus 3 degree levelling adjustment on the screen bracket, so a slightly out-of-true wall plate does not leave you with a crooked display.
What size and weight of display does the VSYS VS02SE-446 support?
Flat or curved panels from 32" to 75" weighing up to 40 kg, on VESA patterns from 100x100 mm to 400x400 mm. The assembly is strength tested to three times its rated load.
What is the price of the VSYS VS02SE-446?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VS02SE-446?
The full-motion arm, the dual-stud wall plate, a mounting hardware bag, a hook-on bubble level and a printed installation guide.
Do you install the VSYS VS02SE-446 on site and deliver outside major cities?
Yes. Our technicians handle the wall fixing and cable dressing for teams in Lahore and Faisalabad, and we deliver nationwide from our Pakistan warehouse.
Can you supply the VSYS VS02SE-446 for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
What warranty and local support come with the VSYS VS02SE-446?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Request a quote for the VSYS VS02SE-446 Full-Motion Wall Mount for 32"–75" Displays, 40 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Full-motion arm, dual-stud wall plate, mounting hardware bag, hook-on bubble level, printed installation guide
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
