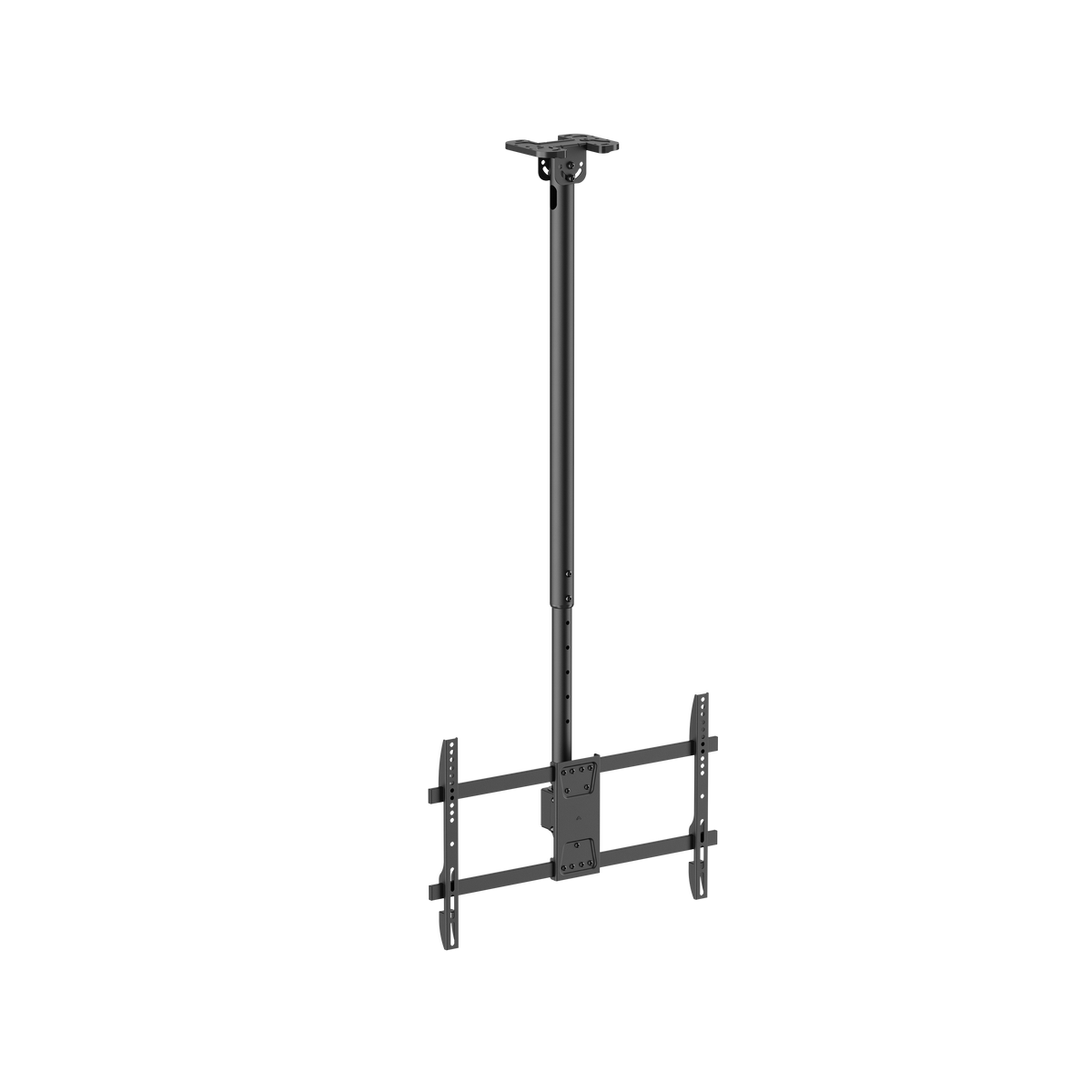

VSYS VCM-CE1546L Adjustable Ceiling TV Mount for 43"–86" Displays, 60 kg
The VSYS VCM-CE1546L is a single-screen adjustable ceiling mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a ceiling mount, it answers the rooms where a wall simply is not available — glazed frontages, open-plan retail floors, island counters and atriums. A telescopic pole drops the display anywhere...
- FITS
- 43" - 86"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VCM-CE1546L is a single-screen adjustable ceiling mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a ceiling mount, it answers the rooms where a wall simply is not available — glazed frontages, open-plan retail floors, island counters and atriums. A telescopic pole drops the display anywhere between 1090 mm and 1690 mm below the slab, and the ceiling plate itself tilts, so a pitched or sloping roof does not rule the fixing out.
Built by VSYS from 1.5 to 2.5 mm cold-rolled steel and rated to 60 kg on 43" to 86" panels, the VCM-CE1546L gives installers in Pakistan 360° rotation, tilt to -25° and ±3° levelling — the last of which is what actually gets a hanging screen looking square from the floor.
Key features
- Single-screen ceiling mount rated to 60 kg on 43" to 86" displays
- Telescopic pole adjustable from 1090 mm to 1690 mm, covering a wide span of ceiling heights from one part number
- Tiltable ceiling plate suits flat slabs and pitched or sloping roofs without a separate adaptor
- Full 360° rotation around the pole for flexible sightlines in open-plan spaces
- Tilt from 0° to -25° for displays hung well above eye level
- ±3° levelling adjustment to square the panel after it is hung
- Cable management routed inside the pole for a clean, concealed finish
- 1.5–2.5 mm cold-rolled steel with black powder coating, strength tested to four times its rated load
Specifications
- Model: VSYS VCM-CE1546L
- Accessory Type: Ceiling Mount, single screen
- Mounting Type: Ceiling Mount
- Display Compatibility: 43" – 86"
- VESA Pattern: 200x200 mm to 600x400 mm, maximum hole spread 610x402 mm
- Maximum Load: 60 kg (132 lbs)
- Drop Range: Telescopic pole 1090 mm – 1690 mm
- Tilt Range: 0° to -25°
- Rotation: 360° around the pole
- Levelling: Plus or minus 3°
- Ceiling Plate: Tiltable, for flat or pitched ceilings
- Cable Management: Routed internally through the pole
- Material: 1.5–2.5 mm cold-rolled steel, black powder coating
- Testing: Strength tested to 4x rated load
- In the Box: Tiltable ceiling plate, telescopic pole, VESA bracket, mounting hardware kit, installation instructions
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Karachi, Quetta, and Lahore that need a secure, properly sized ceiling mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VCM-CE1546L in Pakistan?
Touchscreens.com.pk supplies the VSYS VCM-CE1546L across Pakistan, including Karachi and Lahore, with delivery and after-sales support included.
What is the price of the VSYS VCM-CE1546L?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
Is the VSYS VCM-CE1546L a single or dual screen mount?
Single screen. It carries one display of 43" to 86" up to 60 kg. If you need two panels on one pole, ask us about the dual-screen models in the VSYS ceiling range.
How far below the ceiling does the VSYS VCM-CE1546L hang a display?
The telescopic pole sets the drop anywhere from 1090 mm to 1690 mm, so one mount covers standard ceilings through to taller retail and lobby spaces.
Can the VSYS VCM-CE1546L be fitted to a sloping ceiling?
Yes. The ceiling plate itself tilts, so it fixes securely to pitched or sloping structures as well as flat concrete slabs, without needing a separate angled bracket.
How does the VSYS VCM-CE1546L move once installed?
It rotates a full 360° around the pole, tilts from 0° to -25° for a downward viewing angle, and offers ±3° of levelling to square the screen precisely.
What displays fit the VSYS VCM-CE1546L?
Panels from 43" to 86" up to 60 kg, with VESA hole patterns from 200x200 mm to 600x400 mm and a maximum spread of 610x402 mm. Send your model and we will confirm.
Do you install the VSYS VCM-CE1546L on site?
Yes. Ceiling work needs a sound fixing point and a two-person lift, so our technicians handle the structural check, the pole assembly and the cable run for teams in Islamabad and Faisalabad.
What warranty and local support come with the VSYS VCM-CE1546L?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Can you supply the VSYS VCM-CE1546L for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
Request a quote for the VSYS VCM-CE1546L Adjustable Ceiling TV Mount for 43"–86" Displays, 60 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Tiltable ceiling plate, telescopic pole, VESA bracket, mounting hardware kit and installation instructions
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
