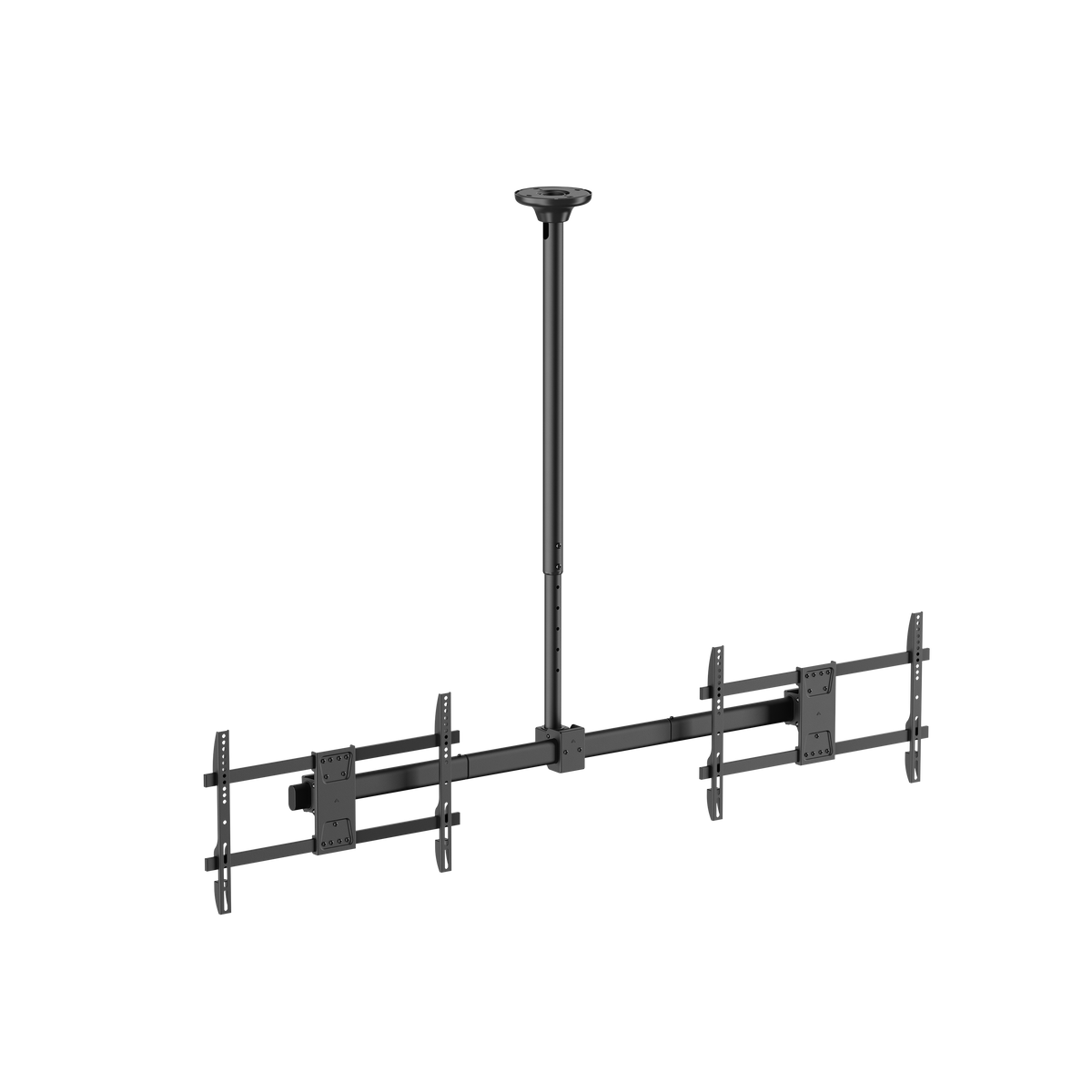

VSYS VCM-CE1546SL Dual-Screen Ceiling Mount for 34"–60" Displays, 40 kg per Screen
The VSYS VCM-CE1546SL is a side-by-side dual-screen ceiling mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a dual-screen ceiling mount, it hangs two panels between 34" and 60" from one shared telescoping pole, each rated to 40 kg for a combined 80 kg — the arrangement airport...
- FITS
- 34 inch to 60 inch per screen
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VCM-CE1546SL is a side-by-side dual-screen ceiling mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a dual-screen ceiling mount, it hangs two panels between 34" and 60" from one shared telescoping pole, each rated to 40 kg for a combined 80 kg — the arrangement airport gate areas, supermarket aisles and open retail floors need when a single structural anchor has to serve two viewing directions at once.
Built by VSYS, the VCM-CE1546SL pairs a tiltable ceiling plate with a 1065–1665 mm telescoping pole, so AV integrators in Pakistan can fix it to a flat slab or a pitched roof, set the drop to suit the room, and then square each screen using plus or minus 3 degrees of levelling adjustment.
Key features
- Two displays from 34" to 60" mounted side by side on a single ceiling point, 40 kg per screen and 80 kg combined
- Telescoping pole adjusts from 1065 mm to 1665 mm, covering standard and high ceilings from one part number
- Tiltable ceiling plate fixes to flat slabs or pitched roof structures without a separate adaptor bracket
- Full 360-degree rotation around the pole plus 0 to -25 degrees of tilt for downward viewing angles
- Plus or minus 3 degrees of fine levelling on each bracket so both panels read as one continuous line
- VESA support from 200x200 mm to 600x400 mm per screen, maximum hole spread 610x402 mm
- Detachable screen panels and integrated cable routing simplify both installation and later servicing
- 1.5–2.5 mm cold-rolled steel with a black powder-coated finish, strength tested four times
Specifications
- Model: VSYS VCM-CE1546SL
- Accessory Type: Dual-Screen Ceiling Mount (side by side)
- Mounting Type: Ceiling Mount
- Display Compatibility: 34" – 60" per screen
- VESA Pattern: 200x200 mm to 600x400 mm per screen (max hole spread 610x402 mm)
- Maximum Load: 40 kg per screen, 80 kg combined
- Tilt Range: 0° to -25°
- Rotation: 360°
- Levelling Adjustment: ±3°
- Pole Drop Range: 1065 mm – 1665 mm (41.9" – 65.6")
- Ceiling Plate: Tiltable, suits flat or pitched roofs
- Cable Management: Integrated through the pole
- Material: 1.5–2.5 mm cold-rolled steel, powder-coated
- Colour: Black
- Testing: Strength tested 4x
- In the Box: Tiltable ceiling plate, telescoping pole, two VESA screen brackets, mounting hardware kit, installation instructions
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Karachi, Lahore, and Islamabad that need a secure, properly sized dual-screen ceiling mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VCM-CE1546SL in Pakistan?
Touchscreens.com.pk supplies the VSYS VCM-CE1546SL across Pakistan, including Karachi and Islamabad, with delivery and after-sales support included.
What is the price of the VSYS VCM-CE1546SL?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
How much weight can each side of the VSYS VCM-CE1546SL carry?
Each screen bracket is rated to 40 kg independently, giving a combined 80 kg across both panels. The frame is 1.5–2.5 mm cold-rolled steel and has been strength tested four times.
What VESA patterns does the VSYS VCM-CE1546SL support?
Each side accepts VESA patterns from 200x200 mm up to 600x400 mm, with a maximum mounting-hole spread of 610x402 mm — send us your screen model and we will confirm the fit before you order.
Can the VSYS VCM-CE1546SL be fitted to a sloped or pitched ceiling?
Yes. The ceiling plate itself tilts, so it seats correctly on a pitched roof structure as well as on a standard flat slab, with no extra adaptor required.
How far below the ceiling do the screens hang?
The telescoping pole adjusts between 1065 mm and 1665 mm, so the same mount suits a normal office ceiling and a taller retail or terminal space.
What is included with the VSYS VCM-CE1546SL?
It ships with the tiltable ceiling plate, the telescoping pole, two VESA screen brackets and a full mounting hardware kit with printed instructions; anchors for your specific slab type can be added on request.
Do you install the VSYS VCM-CE1546SL on site?
Yes, our technicians handle ceiling installation and safe display mounting for teams in Rawalpindi and Faisalabad. Because of the combined load, we carry out a structural check on the fixing point first.
What warranty and local support come with the VSYS VCM-CE1546SL?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Can you supply the VSYS VCM-CE1546SL for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
Request a quote for the VSYS VCM-CE1546SL Dual-Screen Ceiling Mount for 34"–60" Displays, 40 kg per Screen: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
