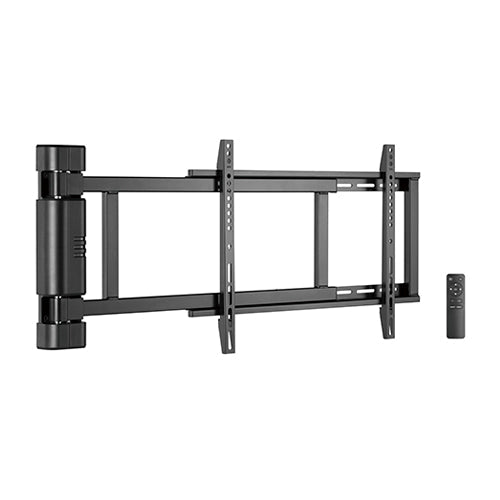

VSYS VCM-M06 Motorised Swivel TV Wall Mount for 32"–75" Displays, 50 kg

The VSYS VCM-M06 is a motorised swivel wall mount for displays from VSYS, supplied across Pakistan by Touchscreens.com.pk.

As a powered wall mount, it removes the reach problem that stops most articulating brackets being used properly — nobody wants to lean over a boardroom table or a shop counter to drag a 50 kg screen round. A low-noise motor swings the display through 0° to 170° on a press of the bundled RF remote, and position memory recalls saved angles instead of re-aiming by eye.

Built by VSYS for 32" to 75" panels up to 50 kg, the VCM-M06 sits just 56 mm off the wall when retracted, runs from a standard 100–240 V outlet on its 1.5 m cord, and includes collision avoidance that halts the motor the moment the arm meets an obstruction — useful in the tighter rooms integrators in Pakistan actually work in.

Key features

• Motorised swivel through 0° to 170° driven by a low-noise motor, operated from the supplied RF remote
• Position memory stores preferred viewing angles and recalls them with a single button press
• Collision avoidance stops the motor automatically when the arm meets an obstruction, protecting both screen and surroundings
• RF remote works without line of sight, so the screen still responds from behind a partition or across a room
• Slim 56 mm retracted profile keeps the panel close to the wall when it is parked
• Rated for 32" to 75" displays up to 50 kg, with VESA patterns from 200x200 mm to 600x400 mm
• Load tested to three times its rated capacity, in steel, aluminium and engineering plastic
• Runs on standard 100–240 V AC via a 1.5 m power cord — plan a socket or in-wall power point behind the display
• Certified to CE, FCC, RoHS, ErP and AS/NZS, and supplied with a hook-on bubble level for accurate wall plate alignment

Specifications

• Model: VSYS VCM-M06
• Accessory Type: Motorised Swivel Wall Mount
• Mounting Type: Wall Mount, powered
• Display Compatibility: 32" – 75" interactive displays and commercial TVs
• VESA Pattern: 200x200 mm to 600x400 mm
• Maximum Load: 50 kg
• Swivel Range: 0° to 170°, motorised
• Control: RF remote control with position memory
• Safety: Collision avoidance stops the motor on obstruction
• Wall Clearance: 56 mm minimum, retracted
• Power: 100–240 V AC, 1.5 m power cord
• Material: Steel, aluminium and plastic
• Testing: Load tested to 3x rated capacity
• Certifications: CE, FCC, RoHS, ErP, AS/NZS
• In the Box: Motorised swivel mount, wall plate, RF remote control, mounting hardware bag, power cord, installation guide
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Karachi, Faisalabad, and Lahore that need a secure, properly sized motorised swivel wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VCM-M06 in Pakistan?

Touchscreens.com.pk supplies the VSYS VCM-M06 across Pakistan, including Karachi and Faisalabad, with delivery and after-sales support included.

What is the price of the VSYS VCM-M06?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

Is the VSYS VCM-M06 motorised or manual?

Motorised. The swivel is driven by an electric motor and controlled from the supplied RF remote — you do not push the screen by hand.

How far does the VSYS VCM-M06 swivel?

Through 0° to 170° under power, which is enough to turn a display from facing one seating group to facing another across an open-plan room.

What does the position memory on the VSYS VCM-M06 do?

It stores the angles you use most and returns the screen to them exactly on one button press, so a room can be reset for the next meeting or the next shift without anyone eyeballing it.

What happens if something is in the way when the VSYS VCM-M06 moves?

Collision avoidance detects the resistance and stops the motor, which protects the panel, the arm and whatever it has met.

Does the VSYS VCM-M06 need a power supply?

Yes. It runs on standard 100–240 V AC through a 1.5 m cord, so allow for a socket or an in-wall power point behind the display when planning the installation.

What size and weight of display does the VSYS VCM-M06 take?

Panels from 32" to 75" weighing up to 50 kg, with VESA patterns from 200x200 mm to 600x400 mm. The mount is load tested to three times its rated capacity.

What warranty and local support come with the VSYS VCM-M06?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VCM-M06 for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
