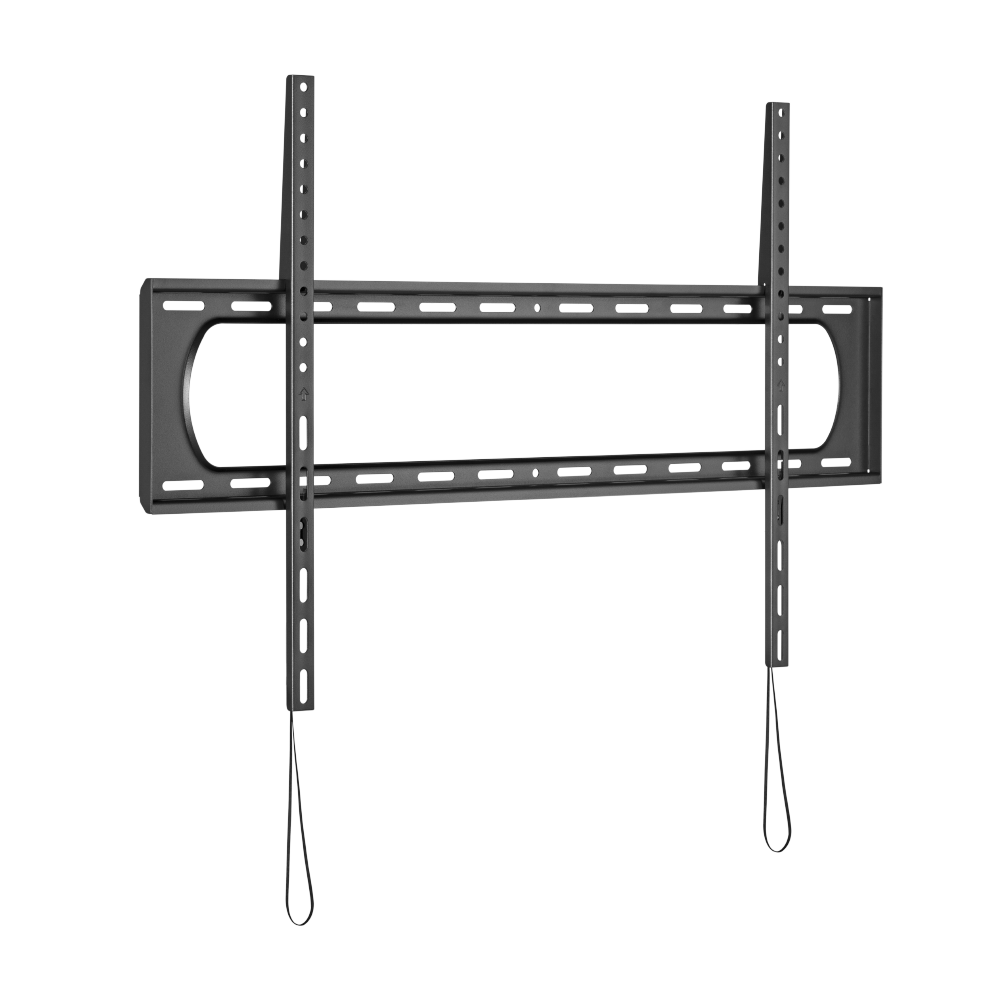

VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg
The VSYS VS01A-69F is a heavy-duty fixed wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a mount for 60" to 120" panels the design question is no longer whether it holds, but how the load reaches the building. A wide plate in 2 mm cold-rolled steel...
- FITS
- 60" - 120"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS01A-69F is a heavy-duty fixed wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a mount for 60" to 120" panels the design question is no longer whether it holds, but how the load reaches the building. A wide plate in 2 mm cold-rolled steel spreads 120 kg across two studs rather than concentrating it on a single line of fixings, and the assembly is UL approved and strength tested to four times its rating.
Built by VSYS for permanent large-format installations, the VS01A-69F still sits only 35 mm off the wall. Quick-release pull cords let a technician drop the panel off the plate for rear access without dismantling the bracket, and a hook-on bubble level is supplied so a 100" screen goes up straight the first time.
Key features
- 120 kg rating in 2 mm cold-rolled steel — UL approved and strength tested to four times the load
- Fits 60" to 120" flat and curved panels, the sizes used in auditoria, atria and large signage
- 35 mm wall clearance, unusually shallow for a mount at this capacity
- VESA coverage from 50x50 mm to 900x600 mm, with a maximum hole spread of 974x602 mm
- Quick-release spring locks with pull cords release the panel for rear access, then re-seat positively
- Wide wall plate distributes the load across dual studs at 406, 450 or 600 mm spacing
- Hook-on bubble level included so the plate is levelled before the screen goes near it
- Open architecture leaves recessed sockets, signal plates and ventilation reachable behind the display
Specifications
- Model: VSYS VS01A-69F
- Accessory Type: Heavy-Duty Fixed Wall Mount
- Mounting Type: Wall Mount
- Display Compatibility: 60" – 120" flat or curved displays and commercial TVs
- VESA Pattern: 50x50 mm to 900x600 mm (maximum hole spread 974x602 mm)
- Maximum Load: 120 kg (264 lbs)
- Movement: Fixed — no tilt or swivel
- Wall Clearance: 35 mm (1.4")
- Wall Fixing: Structural wall or dual stud at 406, 450 or 600 mm spacing
- Service Access: Quick-release spring locks with pull cords
- Material: 2 mm cold-rolled steel, black powder-coated
- Certifications: UL approved, strength tested to 4x rated load
- In the Box: Wall plate, bracket arms, heavy-duty dual-stud hardware kit, hook-on bubble level, printed installation instructions
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Karachi, and Peshawar that need a secure, properly sized heavy-duty fixed wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS01A-69F in Pakistan?
Touchscreens.com.pk supplies the VSYS VS01A-69F across Pakistan, including Islamabad and Karachi, with delivery and after-sales support included.
What is the price of the VSYS VS01A-69F?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
How heavy a display can the VSYS VS01A-69F carry?
Up to 120 kg, or 264 lbs. That covers essentially every 60" to 120" commercial panel and interactive display currently in service, with the UL approval and 4x strength test behind it.
What kind of wall does the VSYS VS01A-69F need?
A structurally sound one. The plate is designed to span two studs at 406, 450 or 600 mm centres, or to fix into solid masonry or concrete with suitable anchors. Drywall alone is not adequate at this weight.
Can the panel be removed from the VSYS VS01A-69F for servicing?
Yes. Pull cords release the spring locks so the display lifts off the wall plate for rear access, then hooks back on and locks again — no need to unbolt the bracket arms from the screen.
How far off the wall does a 100-inch screen sit on this mount?
35 mm, about 1.4 inches. That is shallow for a 120 kg mount, and it is the main reason integrators choose it for boardrooms and lobbies where the screen should look built in.
Does the VSYS VS01A-69F fit curved displays?
Yes, within the same size, weight and VESA limits. Send us the display model and we will confirm the hole pattern falls inside the 974x602 mm maximum spread.
How many people are needed to install the VSYS VS01A-69F?
Plan on at least two for the lift, and more for panels at the top of the range. The bubble level is fitted first so the plate is true before anyone handles the screen.
What warranty and local support come with the VSYS VS01A-69F?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Can you supply the VSYS VS01A-69F for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
Request a quote for the VSYS VS01A-69F Heavy-Duty Fixed Wall Mount for 60"–120" Displays, 120 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Wall plate, bracket arms, heavy-duty dual-stud hardware kit, hook-on bubble level and printed installation instructions
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
