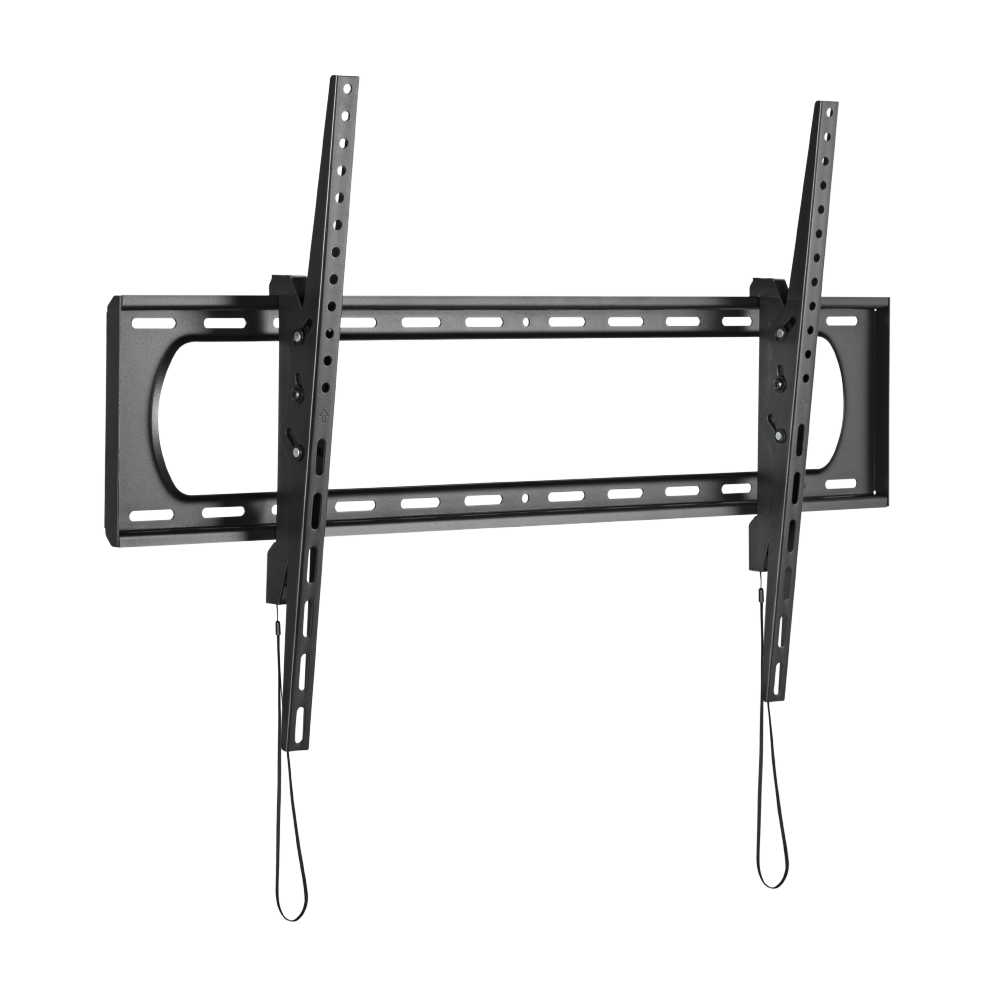

VSYS VS01A-69T Heavy-Duty Tilt Wall Mount for 60"–120" Displays, 120 kg

The VSYS VS01A-69T is a heavy-duty tilt wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a tilt mount it exists for one situation: a large screen hung above head height, where a flat vertical panel throws ceiling lights straight back at the audience. Ten degrees of downward angle turns that reflection away and points the picture at the seats instead of the far wall.

Built by VSYS in 2 mm cold-rolled steel for 60" to 120" panels up to 120 kg, the VS01A-69T sets that angle without tools — no unbolting the display to correct it after the room is finished. It is UL approved, strength tested to four times its rating, and trades a deeper 80 mm profile for the room the tilt mechanism needs.

Key features

• Toolless tilt of plus 10 to minus 10 degrees, adjustable after installation with the panel still in place
• 120 kg rating in 2 mm cold-rolled steel, UL approved and strength tested to four times the load
• Handles 60" to 120" flat and curved panels for auditoria, signage runs and ballrooms
• VESA coverage from 50x50 mm to 900x600 mm, with a maximum hole spread of 965x602 mm
• Quick-release spring locks with pull cords for rear service access without stripping the bracket
• 80 mm wall clearance gives the tilt mechanism its travel and leaves depth for connectors
• Dual-stud wall plate suits 406, 450 and 600 mm stud spacing, with a hook-on bubble level supplied
• Open architecture keeps sockets, signal plates and airflow accessible behind the screen

Specifications

• Model: VSYS VS01A-69T
• Accessory Type: Heavy-Duty Tilt Wall Mount
• Mounting Type: Wall Mount
• Display Compatibility: 60" – 120" flat or curved displays and commercial TVs
• VESA Pattern: 50x50 mm to 900x600 mm (maximum hole spread 965x602 mm)
• Maximum Load: 120 kg (264 lbs)
• Movement: Tilt only, no swivel or extension
• Tilt Range: Plus 10 to minus 10 degrees, toolless adjustment
• Wall Clearance: 80 mm (3.1")
• Wall Fixing: Structural wall or dual stud at 406, 450 or 600 mm spacing
• Service Access: Quick-release spring locks with pull cords
• Material: 2 mm cold-rolled steel, black powder-coated
• Certifications: UL approved, strength tested to 4x rated load
• In the Box: Wall plate, bracket arms, heavy-duty dual-stud hardware kit, hook-on bubble level, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Multan, Lahore, and Quetta that need a secure, properly sized heavy-duty tilt wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS01A-69T in Pakistan?

Touchscreens.com.pk supplies the VSYS VS01A-69T across Pakistan, including Multan and Lahore, with delivery and after-sales support included.

What is the price of the VSYS VS01A-69T?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

How much does the VSYS VS01A-69T tilt?

Plus 10 to minus 10 degrees. On a screen mounted a metre or so above eye level, ten degrees is usually enough to move a ceiling-light reflection out of the seated sightline.

Do I need tools to change the tilt angle?

No. The angle is set by hand, so it can be corrected once the room is furnished and the real seating positions are known — without taking the panel down again.

Should I choose the VSYS VS01A-69T or the fixed VS01A-69F?

Same 120 kg rating and the same size range. Choose the tilt version when the screen sits above eye level or faces glare; choose the fixed VS01A-69F when the screen is at viewing height and you want the shallower 35 mm profile.

Why does the VSYS VS01A-69T sit further off the wall?

Because a tilting bracket needs somewhere to pivot. The 80 mm clearance is the cost of the mechanism, and it also leaves useful depth for connectors and cable bends behind a large panel.

Is the VSYS VS01A-69T certified for heavy public installations?

It is UL approved and strength tested to four times its 120 kg rating. For high, public-facing positions we would still specify a structural wall and a documented fixing schedule.

Can the display be taken off the VSYS VS01A-69T for maintenance?

Yes — the spring locks release on pull cords, so the panel comes off the plate for rear access and hooks back on without re-bolting the arms.

What warranty and local support come with the VSYS VS01A-69T?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VS01A-69T for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
