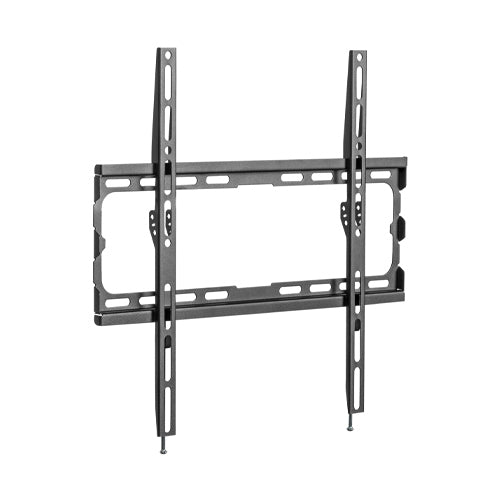

VSYS VS01E-44F Low-Profile Fixed Wall Mount for 32"–75" Displays, 45 kg

The VSYS VS01E-44F is a low-profile fixed wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a fixed mount it does one job and does it in the least possible space. A 20 mm wall clearance holds a 32" to 75" panel almost flat against the plaster, so a meeting-room screen or a corridor signage display reads as part of the wall rather than as hardware bolted onto it.

Built by VSYS from 1.4 mm cold-rolled steel and strength tested to four times its 45 kg rating, the VS01E-44F uses a picture-hanging install — the arms hook straight onto the wall plate, so one technician can seat a mid-size panel unaided and lock it down with the supplied security screws.

Key features

• 20 mm wall clearance keeps a 32" to 75" panel almost flush for a clean, built-in finish
• Rated to 45 kg in 1.4 mm cold-rolled steel, strength tested to four times its load
• Picture-hanging design lets a single technician hook the display onto the wall plate without a second pair of hands
• VESA support from 75x75 mm to 400x400 mm covers nearly every panel in this size class
• Open-frame plate leaves the back of the screen clear for sockets, cabling and airflow
• Security screws lock the display to the brackets — worth having in classrooms and public corridors
• Fixes to solid walls or across dual studs at 406 mm spacing
• Fine-texture black powder coat shrugs off scuffing during fit-out and stays invisible behind the panel

Specifications

• Model: VSYS VS01E-44F
• Accessory Type: Low-Profile Fixed Wall Mount
• Mounting Type: Wall Mount
• Display Compatibility: 32" – 75" interactive displays and commercial TVs
• VESA Pattern: 75x75 mm to 400x400 mm
• Maximum Load: 45 kg (99 lbs)
• Movement: Fixed — no tilt or swivel
• Wall Clearance: 20 mm (0.79")
• Wall Fixing: Solid wall or dual stud at 406 mm spacing
• Installation Method: Picture-hanging hook-on, one-person fit
• Material: 1.4 mm cold-rolled steel, black powder-coated
• Testing: Strength tested to 4x rated load
• Security: Anti-theft security screws included
• In the Box: Wall plate, bracket arms, security screws, mounting hardware kit, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Karachi, Multan, and Quetta that need a secure, properly sized low-profile fixed wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS01E-44F in Pakistan?

Touchscreens.com.pk supplies the VSYS VS01E-44F across Pakistan, including Karachi and Multan, with delivery and after-sales support included.

What is the price of the VSYS VS01E-44F?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

What screen sizes and weights does the VSYS VS01E-44F take?

It is rated for flat panels from 32" to 75" weighing up to 45 kg, which covers the bulk of classroom, huddle-room and signage screens in that class.

How far from the wall does the VSYS VS01E-44F hold the screen?

Just 20 mm, or about 0.79 of an inch. That is one of the shallowest profiles available, and the open frame still leaves room to reach sockets and cabling behind the panel.

Can one person install the VSYS VS01E-44F?

For screens at the smaller end of the range, yes. The picture-hanging design means the bracket arms hook straight onto the wall plate rather than needing to be aligned and bolted while the panel is held up.

Does the VSYS VS01E-44F tilt or swivel?

No — it is deliberately fixed. That is what allows the 20 mm depth. If you need a downward angle for a high mounting position, ask us about the VSYS tilt range instead.

Which VESA patterns fit the VSYS VS01E-44F?

Anything from 75x75 mm up to 400x400 mm. Send us your display model and we will confirm the pattern and weight against the mount before you order.

Can the display be locked onto the VSYS VS01E-44F?

Yes. Security screws are supplied that fasten the panel to the bracket arms, which deters casual removal in corridors, reception areas and shared classrooms.

What warranty and local support come with the VSYS VS01E-44F?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VS01E-44F for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
