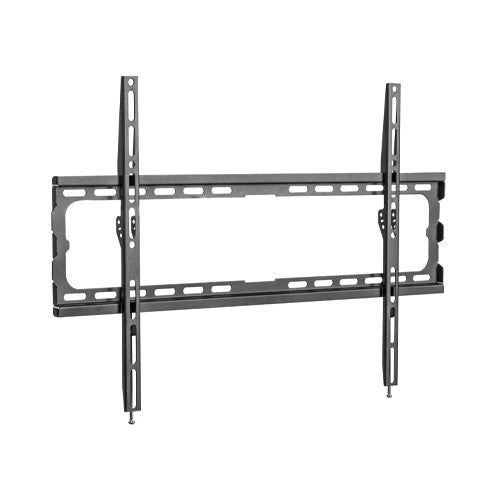

VSYS VS01E-46F Low-Profile Fixed Wall Mount for 37"–86" Displays, 45 kg

The VSYS VS01E-46F is a low-profile fixed wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.

As a wall mount for the 37" to 86" bracket, its useful trick is reach rather than strength. The plate accepts VESA patterns all the way out to 600x400 mm, so the wide hole spacing found on 75", 80" and 86" commercial panels lands on the rails without adapters or improvised spacers.

Built by VSYS in 1.4 mm cold-rolled steel and rated to 45 kg, the VS01E-46F is aimed squarely at multi-room rollouts. It ships in a deliberately compact carton to keep freight and store-room space down, and fixes to solid walls or dual studs at 406, 450 or 600 mm spacing so one part number covers most buildings on a site.

Key features

• VESA range from 200x200 mm to 600x400 mm takes the wide hole spacing of 75" to 86" commercial panels
• 20 mm wall clearance holds even a large screen close to the wall for a near-flush installation
• 45 kg capacity in 1.4 mm cold-rolled steel, strength tested to four times its rated load
• Compact packaging reduces freight cost and warehouse footprint on volume and project orders
• Three stud-spacing options — 406, 450 and 600 mm — so one SKU suits varied wall construction
• Open-frame plate keeps sockets, data points and airflow accessible behind the panel
• Security screws included to fasten the display to the bracket arms
• Black powder-coated finish that disappears behind the screen in a finished room

Specifications

• Model: VSYS VS01E-46F
• Accessory Type: Low-Profile Fixed Wall Mount
• Mounting Type: Wall Mount
• Display Compatibility: 37" – 86" interactive displays and commercial TVs
• VESA Pattern: 200x200 mm to 600x400 mm
• Maximum Load: 45 kg (99 lbs)
• Movement: Fixed — no tilt or swivel
• Wall Clearance: 20 mm (0.79")
• Wall Fixing: Solid wall or dual stud at 406, 450 or 600 mm spacing
• Installation Method: Lift onto wall plate, then lock with security screws
• Material: 1.4 mm cold-rolled steel, black powder-coated
• Testing: Strength tested to 4x rated load
• Packaging: Compact carton for reduced freight and storage volume
• In the Box: Wall plate, bracket arms, security screws, mounting hardware kit, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Lahore, Faisalabad, and Rawalpindi that need a secure, properly sized low-profile fixed wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS01E-46F in Pakistan?

Touchscreens.com.pk supplies the VSYS VS01E-46F across Pakistan, including Lahore and Faisalabad, with delivery and after-sales support included.

What is the price of the VSYS VS01E-46F?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

Will the VSYS VS01E-46F take an 86-inch panel?

Yes, provided the panel is 45 kg or lighter and its VESA pattern is within 600x400 mm. Most 86" commercial displays sit inside both limits, but send us the model and we will check it against the spec sheet.

How does the VSYS VS01E-46F differ from the smaller VS01E-44F?

Same 20 mm depth and same 45 kg rating, but the VS01E-46F opens the VESA window out to 600x400 mm and adds 450 and 600 mm stud spacing, which is what larger panels and varied wall construction need.

What VESA patterns does the VSYS VS01E-46F support?

From 200x200 mm up to 600x400 mm. Smaller patterns than 200x200 mm are better served by the 32" to 75" model in the same range.

Is the VSYS VS01E-46F a one-person installation?

The wall plate can be fitted single-handed, but lifting a 75" or 86" panel onto it should be a two-person job — the weight is manageable, the size is not.

Why does the packaging matter on the VSYS VS01E-46F?

On a fifty-room or fifty-classroom rollout, carton volume drives freight and storage cost. The compact box keeps both down when mounts are shipped and staged in quantity.

Can cables and power be run behind the VSYS VS01E-46F?

Yes. The frame is open rather than a solid backplate, so recessed sockets, data outlets and cable routes stay reachable once the screen is hung.

What warranty and local support come with the VSYS VS01E-46F?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VS01E-46F for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
