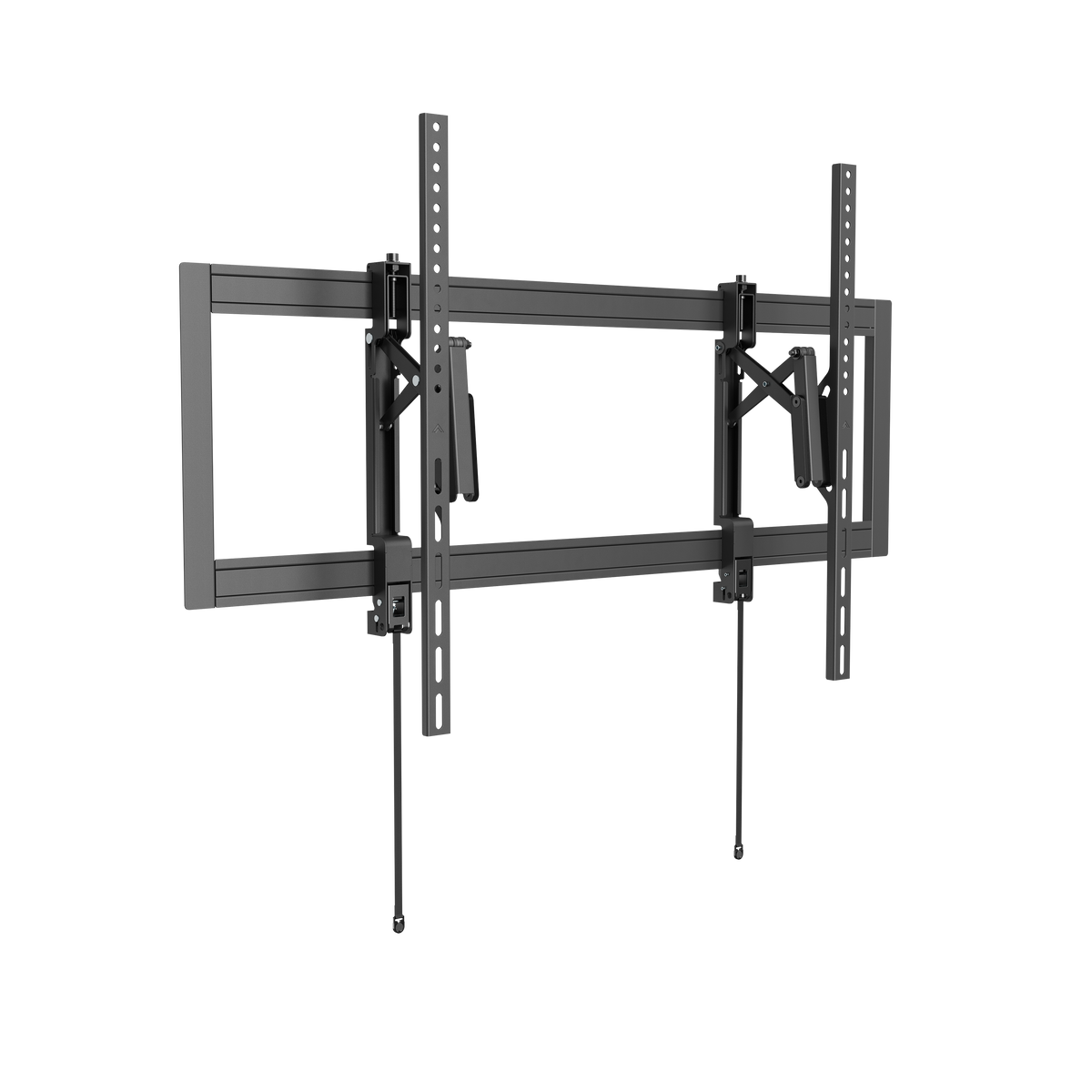

VSYS VS03P-610T Pull-Out Tilt Wall Mount for 55"–105" Displays, 80 kg

The VSYS VS03P-610T is a pull-out tilting wall mount for single large-format displays from VSYS, supplied across Pakistan by Touchscreens.com.pk.

As a service-access wall mount, it answers one specific problem — a 105" panel bolted flat against a wall leaves no way to reach the HDMI, network and power connections behind it. The VS03P-610T draws the whole display 172 mm clear of the wall so an engineer can work behind the screen, then pushes it back to a 53 mm retracted profile.

Built by VSYS from 2 mm cold-rolled steel and rated to 80 kg, the VS03P-610T layers +10° to -15° tilt and ±10° swivel on top of that pull-out travel, so AV integrators in Pakistan can correct a high mounting position over a reception desk or cabinet instead of leaving viewers looking up into glare.

Key features

• 172 mm of pull-out travel gives full rear access to cabling, ports and the OPS slot without taking the panel down
• Wall clearance runs from 53 mm retracted to 172 mm extended, so the display sits tight to the wall between service visits
• Tilt of +10° to -15° corrects for high mounting above reception desks, cabinets and fireplaces
• Swivel of +10° to -10° angles the screen towards the main seating or queueing line
• Sliding lateral positioning shifts the display left or right on the wall plate after the plate is fixed, so stud spacing does not dictate where the screen lands
• Micro-adjustment levelling squares the panel up once it is already hanging
• Anti-theft locking structure with quick-release spring locks — secure in public areas, still quick to release for service
• Solid-wall or dual-stud fixing at 406 mm, 450 mm or 600 mm centres suits both concrete and framed walls
• UL certified 2 mm cold-rolled steel construction rated to 80 kg across a 55" to 105" range

Specifications

• Model: VSYS VS03P-610T
• Accessory Type: Pull-Out Tilting Wall Mount
• Mounting Type: Wall Mount, single display
• Display Compatibility: 55" – 105" interactive displays and commercial TVs
• VESA Pattern: 200x200 mm to 1000x600 mm (max mounting hole 1000x602 mm)
• Maximum Load: 80 kg (176 lbs)
• Pull-Out Extension: 172 mm
• Wall Clearance: 53 mm retracted to 172 mm extended
• Tilt Range: +10° to -15°
• Swivel Range: +10° to -10°
• Lateral Adjustment: Sliding lateral positioning on the wall plate
• Levelling: Post-installation micro-adjustment
• Wall Fixing: Solid wall or dual stud at 406 mm, 450 mm or 600 mm centres
• Security: Anti-theft locking structure with quick-release spring locks
• Material: 2 mm cold-rolled steel, powder-coated
• Finish: Black
• Certification: UL certified
• In the Box: Wall plate, extend-out bracket arms, mounting hardware kit, anti-theft lock fitting, installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Lahore, Karachi, and Multan that need a secure, properly sized pull-out tilting wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VS03P-610T in Pakistan?

Touchscreens.com.pk supplies the VSYS VS03P-610T across Pakistan, including Lahore and Karachi, with delivery and after-sales support included.

What is the price of the VSYS VS03P-610T?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

How far does the VSYS VS03P-610T pull the display off the wall?

172 mm. That is enough to reach behind a large panel and work on cabling, an OPS module or a wall box, after which the mount pushes back to a 53 mm retracted clearance.

What size and weight of display does the VSYS VS03P-610T take?

It is rated for single displays from 55" to 105" weighing up to 80 kg, with VESA patterns from 200x200 mm up to 1000x600 mm.

Can the display be tilted after the VSYS VS03P-610T is installed?

Yes. It tilts from +10° to -15° and swivels +10° to -10°, which is what makes it usable where the screen has to sit higher than eye level.

Does the VSYS VS03P-610T have to line up exactly with the wall studs?

No. Sliding lateral positioning lets the display move left or right on the wall plate after the plate is fixed, and the plate itself accepts solid-wall or dual-stud fixing at 406 mm, 450 mm or 600 mm centres.

Is the VSYS VS03P-610T secure enough for a public-facing installation?

Yes. An anti-theft locking structure holds the display on the arms, while quick-release spring locks still let an authorised technician remove the screen quickly.

What is the VSYS VS03P-610T made from?

2 mm cold-rolled steel with a black powder-coated finish, and the assembly is UL certified — appropriate for permanently installed commercial panels.

What warranty and local support come with the VSYS VS03P-610T?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VS03P-610T for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
