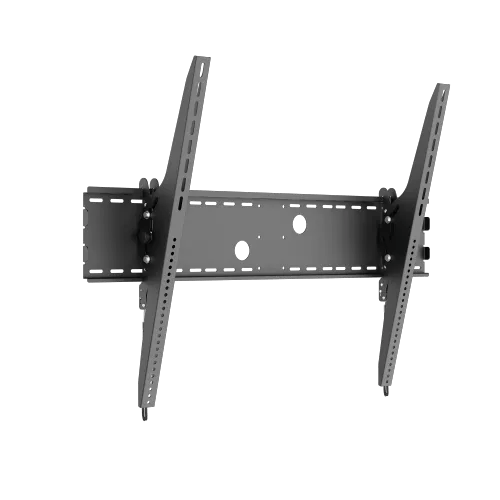

VSYS VS01XL-810T Extra-Large Tilting Wall Mount for 60"–100" Displays, 100 kg
The VSYS VS01XL-810T is an extra-large tilting wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As an XL tilting wall mount, it exists for the panels that ordinary brackets cannot take — 60" to 100" screens weighing as much as 100 kg, hung in auditoriums, hotel ballrooms...
- FITS
- 60" - 100"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS01XL-810T is an extra-large tilting wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As an XL tilting wall mount, it exists for the panels that ordinary brackets cannot take — 60" to 100" screens weighing as much as 100 kg, hung in auditoriums, hotel ballrooms and airport concourses. The frame is pressed from 2 mm cold-rolled steel, carries UL approval, and has been strength tested four times over its rated load.
Built by VSYS, the VS01XL-810T gives installers two adjustments that matter on a big screen. Toolless tilt runs a wide plus 15 to minus 15 degrees, enough to bring a high-mounted panel down to the audience. Lateral shift brackets then let the hung display slide left or right so it can be centred on the room rather than on the studs it happens to be bolted to.
Key features
- Wide toolless tilt of plus 15 to minus 15 degrees, more range than a standard tilt bracket
- Lateral shift brackets slide the mounted screen sideways so it can be centred after fixing
- 100 kg (220 lbs) capacity on 2 mm cold-rolled steel, UL approved and strength tested four times
- Very wide VESA window from 200x200 mm up to 1000x800 mm for big-format panels
- Suits flat and curved displays from 60" to 100" in signage, boardroom and auditorium roles
- Quick-release spring locks with pull cords let a large panel be detached for rear access
- Deep, wide bracket structure spreads the load across dual studs at 406, 450 or 600 mm centres
- Extra-large tilting wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VS01XL-810T
- Accessory Type: TV Wall Mount
- Mounting Type: Wall Mount, tilting
- Display Compatibility: 60" – 100", flat or curved
- VESA Pattern: 200x200 mm to 1000x800 mm
- Maximum Load: 100 kg (220 lbs)
- Tilt Range: +15° to -15°, toolless adjustment
- Lateral Adjustment: Lateral shift brackets for post-installation centring
- Wall Clearance: 120 mm (4.7 in)
- Stud Spacing Supported: 406 mm, 450 mm or 600 mm
- Material: 2 mm cold-rolled steel, powder-coated black
- Certifications: UL approved, strength tested 4x
- In the Box: Wall plate, bracket arms, lateral shift brackets, heavy-duty dual-stud hardware kit, installation instructions
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Karachi, and Multan that need a secure, properly sized extra-large tilting wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS01XL-810T in Pakistan?
Touchscreens.com.pk supplies the VSYS VS01XL-810T across Pakistan, including Islamabad and Karachi, with delivery and after-sales support included.
What size and weight of display does the VSYS VS01XL-810T take?
Flat or curved panels from 60" to 100" weighing up to 100 kg (220 lbs). The frame is 2 mm cold-rolled steel, UL approved and strength tested four times, so it is rated for the heavy large-format screens used in halls and concourses.
How far does the VSYS VS01XL-810T tilt?
Plus 15 to minus 15 degrees, set without tools. That is a wider swing than a typical tilt bracket, which matters when a 100" panel is mounted well above head height and the audience is looking up at it.
Can the VSYS VS01XL-810T be repositioned after it is fixed to the wall?
Yes. Lateral shift brackets let the hung display slide left or right along the wall plate, so you can centre the screen on the room, a stage or a feature wall even when the stud positions do not line up with it.
What VESA patterns does the VSYS VS01XL-810T fit?
From 200x200 mm up to 1000x800 mm, which covers the largest hole patterns used on big-format commercial panels. Send us your display model and we will confirm the pattern before you order.
What is the price of the VSYS VS01XL-810T?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VS01XL-810T?
The wall plate, bracket arms, lateral shift brackets, a heavy-duty hardware kit for dual-stud fixing and printed installation instructions. Fixings for concrete or block construction can be added to your quotation.
Do you install the VSYS VS01XL-810T on site and deliver outside major cities?
Yes. A screen this size needs a two-person lift and a structurally sound wall, so our technicians handle it directly for teams in Lahore and Peshawar, and we deliver nationwide from our Pakistan warehouse.
Can you supply the VSYS VS01XL-810T for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
What warranty and local support come with the VSYS VS01XL-810T?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Request a quote for the VSYS VS01XL-810T Extra-Large Tilting Wall Mount for 60"–100" Displays, 100 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Wall plate, bracket arms, lateral shift brackets, heavy-duty mounting hardware kit for dual stud installation, printed installation instructions
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
