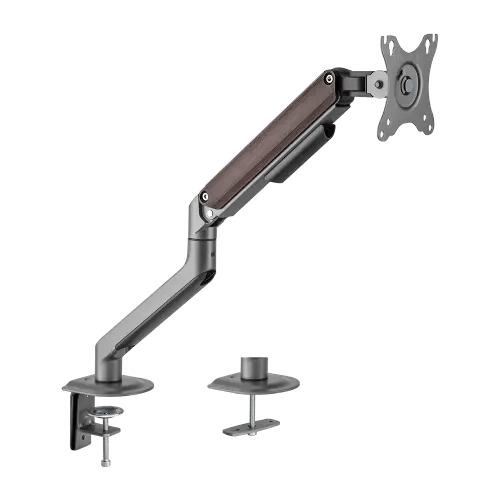

VSYS VMAE-C012 Spring-Assisted Single Monitor Arm for 17"–32" Monitors, 9 kg

The VSYS VMAE-C012 is a spring-assisted single monitor arm from VSYS for one 17" to 32" screen weighing 2 to 9 kg, supplied across Pakistan by Touchscreens.com.pk.

As a desk mount it does one job properly: it takes a single monitor off its factory pedestal and puts the screen wherever the person sitting there actually needs it. The footprint the old stand occupied comes back as usable desk, and the screen sits at eye level instead of forcing the neck down — which matters most on the workstations where somebody sits for eight hours, not the ones used twice a week.

Built by VSYS, the VMAE-C012 uses a mechanical spring counterbalance rather than a friction knob. One tension adjustment tunes the arm to your specific monitor anywhere in the 2–9 kg band, after which the screen glides by fingertip and stays exactly where it was left, with no sag developing over months of use.

Key features

• Spring counterbalance carries the monitor's weight, so height and angle change by hand with nothing to loosen and retighten
• Single tension adjustment matches the arm to any monitor from 2 kg to 9 kg, including a later upgrade to a larger panel
• Tilt ±55°, swivel ±90° and ±180° rotation between landscape and portrait
• Built-in rotation stop prevents the arm swinging into a wall, partition or neighbouring screen — important in back-to-back desk clusters
• Arm extends up to 453 mm from the base, with a height range of 133 mm to 428 mm
• Quick-release joint speeds up installation and shrinks the shipping carton, which lowers freight on volume orders
• Both a desk clamp for 10–80 mm desktops and a grommet mount for 10–40 mm ship in the box
• Cable routing along the arm keeps leads tidy and protected as the screen moves
• Steel and aluminium construction with a powder-coated finish, RoHS compliant
• Three finishes: Space Grey, Matte Silver, and Space Grey with wood

Specifications

• Model: VSYS VMAE-C012
• Accessory Type: Monitor Arm
• Configuration: Single screen
• Mounting Type: Desk clamp or grommet mount
• Display Compatibility: 17" – 32"
• VESA Pattern: 75x75 mm and 100x100 mm
• Load Capacity: 2 kg – 9 kg
• Height Range: 133 mm – 428 mm
• Extension: Up to 453 mm from the base
• Tilt Range: ±55°
• Swivel: ±90°
• Rotation: ±180°, with a built-in rotation stop
• Counterbalance: Self-adjusting mechanical spring
• Desk Clamp: Fits desktops 10–80 mm thick
• Grommet Mount: Fits desktops 10–40 mm thick
• Material: Steel and aluminium, powder coated
• Finishes: Space Grey, Matte Silver, Space Grey and wood
• Compliance: RoHS compliant
• In the box: Arm, detachable VESA plate, desk clamp, grommet mount, printed installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Lahore, Islamabad, and Faisalabad that need a secure, properly sized single monitor arm for their desktop screen — in practice university and college computer labs, single-screen operator posts, hot-desking floors, call centres, accounts and admin departments, and home-office setups where desk space is the constraint.

Frequently asked questions

Where can I buy the VSYS VMAE-C012 in Pakistan?

Touchscreens.com.pk supplies the VSYS VMAE-C012 across Pakistan, including Lahore and Islamabad, with delivery and after-sales support included.

What size and weight of monitor does the VSYS VMAE-C012 hold?

A single screen from 17" to 32", including curved panels, weighing between 2 kg and 9 kg. Below 2 kg the spring has too little to work against, so very light screens are not recommended on this model.

What VESA patterns does the VSYS VMAE-C012 fit?

75x75 mm and 100x100 mm — the two standards used by the overwhelming majority of 17" to 32" desktop monitors. Check the back of the panel or send us the model number.

How does the spring counterbalance on the VSYS VMAE-C012 work?

A mechanical spring inside the arm offsets the monitor's weight. You set the spring tension once to match your screen, after which the monitor moves with fingertip pressure and holds position without drifting down over time.

How far does the VSYS VMAE-C012 extend and how high does it go?

Up to 453 mm of reach from the base, with the screen height adjustable across 133 mm to 428 mm — enough to pull the monitor forward for detailed work and push it back when the desk is needed for paperwork.

Can the VSYS VMAE-C012 turn a monitor to portrait?

Yes, rotation is ±180°, so portrait orientation is straightforward for code, documents or long reports. Check your monitor's own cable clearance before rotating it fully.

Does the VSYS VMAE-C012 need a hole in the desk?

Not necessarily. A desk clamp for 10–80 mm desktops and a grommet mount for 10–40 mm are both supplied, so it fits either a plain desk edge or an existing cable grommet without buying extra parts.

What stops the VSYS VMAE-C012 hitting the wall behind the desk?

A built-in rotation stop limits how far the arm can swing, which protects walls, glass partitions and the screen on the next desk in a back-to-back layout.

Can you supply the VSYS VMAE-C012 for bulk orders or government tenders?

Yes, we regularly supply schools, universities and enterprises with bulk orders and support tender documentation, compliance certificates and staged delivery — the quick-release joint keeps the carton compact, which helps on lab-sized quantities.

What warranty and local support come with the VSYS VMAE-C012?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
