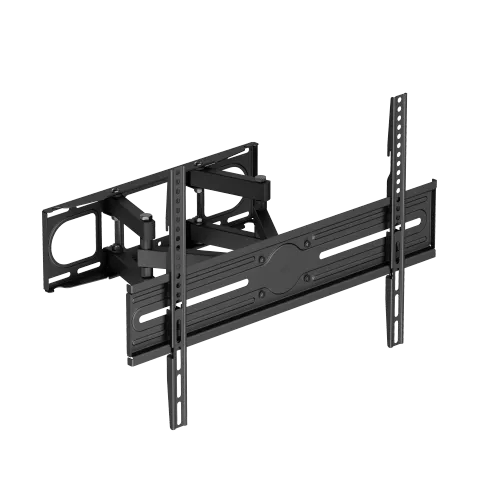

VSYS VS02SE-466 Full-Motion Wall Mount for 37"–80" Displays, 40 kg
The VSYS VS02SE-466 is a large-format full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As a full-motion wall mount, it exists to take the panels that outgrow a 400x400 mm bracket. VESA support runs all the way to 600x400 mm and the size window covers 37"...
- FITS
- 37" - 80"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS02SE-466 is a large-format full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As a full-motion wall mount, it exists to take the panels that outgrow a 400x400 mm bracket. VESA support runs all the way to 600x400 mm and the size window covers 37" to 80", so a large meeting-room or lounge display can still be pulled out, swung round and angled instead of being locked flat to the wall.
Built by VSYS, the VS02SE-466 uses steel with reinforced polymer joints and a two-tier bracket that lets the installer choose between two mounting heights before anything is bolted up. The arm folds to 67 mm and reaches 355 mm, hook-and-loop cable ties keep leads on the arm through the full travel, and a levelling adjustment straightens the picture at the end.
Key features
- Large-format VESA support from 100x100 mm up to 600x400 mm for 37" to 80" panels
- Two-tier height brackets give a choice of final mounting height before fixing
- Arm folds to 67 mm and extends to 355 mm from the wall
- Tilts plus 3 to minus 15 degrees and swivels plus 60 to minus 60 degrees
- Independent screen-levelling adjustment of plus 3 to minus 3 degrees
- Rated to 40 kg on steel and reinforced plastic construction, strength tested
- Hook-and-loop cable management keeps leads tidy through the full range of motion
- Full-motion wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VS02SE-466
- Accessory Type: TV Wall Mount
- Mounting Type: Wall Mount, full motion
- Display Compatibility: 37" – 80", flat or curved
- VESA Pattern: 100x100 mm to 600x400 mm
- Maximum Load: 40 kg
- Tilt Range: +3° to -15°
- Swivel Range: +60° to -60°
- Screen Levelling: +3° to -3°, independent adjustment
- Extension Range: 67 mm folded to 355 mm extended
- Height Adjustment: Two-tier bracket positions
- Material: Steel and reinforced plastic
- Cable Management: Hook-and-loop cable ties along the arm
- In the Box: Full-motion arm, wall plate, mounting hardware bag, hook-on bubble level, printed installation guide
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Multan, Lahore, and Islamabad that need a secure, properly sized full-motion wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS02SE-466 in Pakistan?
Touchscreens.com.pk supplies the VSYS VS02SE-466 across Pakistan, including Multan and Lahore, with delivery and after-sales support included.
How is the VSYS VS02SE-466 different from the VS02SE-446?
It covers a larger 37" to 80" size window and takes VESA patterns up to 600x400 mm, where the VS02SE-446 stops at 32" to 75" and 400x400 mm. Movement, reach and load rating are otherwise comparable, so the choice comes down to your panel's hole pattern.
What size and weight of display does the VSYS VS02SE-466 support?
Flat or curved screens from 37" to 80" weighing up to 40 kg. The frame combines steel with reinforced polymer at the joints and is strength tested before shipping.
How far does the VSYS VS02SE-466 extend and swivel?
The arm folds to 67 mm and reaches 355 mm off the wall, with plus 60 to minus 60 degrees of swivel and plus 3 to minus 15 degrees of tilt.
Can the mounting height of the VSYS VS02SE-466 be changed?
Yes. The bracket offers two tiers, so you can pick the higher or lower position before drilling and land the screen centre where the room actually needs it.
What is the price of the VSYS VS02SE-466?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VS02SE-466?
The full-motion arm, wall plate, a mounting hardware bag, a hook-on bubble level and a printed installation guide.
Do you install the VSYS VS02SE-466 on site and deliver outside major cities?
Yes. Our technicians handle wall fixing and cable routing for teams in Karachi and Rawalpindi, and we deliver nationwide from our Pakistan warehouse.
Can you supply the VSYS VS02SE-466 for bulk orders or government tenders?
Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery.
What warranty and local support come with the VSYS VS02SE-466?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Request a quote for the VSYS VS02SE-466 Full-Motion Wall Mount for 37"–80" Displays, 40 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Full-motion arm, wall plate, mounting hardware bag, hook-on bubble level, printed installation guide
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
