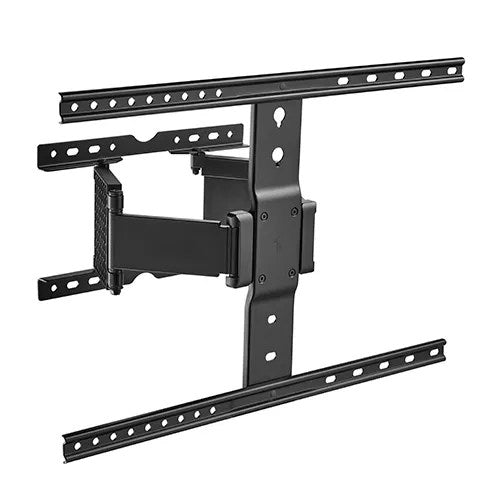

VSYS VS02US-464 Ultra-Slim Full-Motion Wall Mount for 43"–90" Displays, 50 kg
The VSYS VS02US-464 is an ultra-slim full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk. As an ultra-slim full-motion wall mount, it settles the usual trade-off between a clean wall and a movable screen. Folded, the panel sits 19.5 mm off the plaster — close enough to...
- FITS
- 43" - 90"
Request pricing for this model
Firm quotation with delivery and installation, within one working hour.
BULK / TENDER
Ordering 10+ units or supplying against a tender? Our tender desk handles compliance sheets and staged delivery.
Talk to the tender desk →The VSYS VS02US-464 is an ultra-slim full-motion wall mount from VSYS built for interactive displays and commercial screens, supplied across Pakistan by Touchscreens.com.pk.
As an ultra-slim full-motion wall mount, it settles the usual trade-off between a clean wall and a movable screen. Folded, the panel sits 19.5 mm off the plaster — close enough to read as a fixed installation on a feature wall or showroom elevation. Unfolded, the arm reaches 250 mm and lets a 43" to 90" display swing towards whichever side of the room is being used.
Built by VSYS, the VS02US-464 carries up to 50 kg on a RoHS-certified steel and polymer structure that has been tested to four times its rated load. The screen free-tilts through plus 3 to minus 15 degrees, swivels 30 degrees each way, and has its own plus 3 to minus 3 degree levelling adjustment. Decorative covers clip over the arm to hide the cabling.
Key features
- Folds to just 19.5 mm from the wall for a near flush-mount appearance
- Arm extends to 250 mm and swivels plus 30 to minus 30 degrees for angled viewing
- Free-tilting screen through plus 3 to minus 15 degrees plus a separate levelling adjustment
- Handles flat and curved displays from 43" to 90" weighing up to 50 kg
- VESA support from 100x200 mm to 600x400 mm, maximum hole spread 602x400 mm
- RoHS-certified steel and plastic build, strength tested to four times the rated load
- Decorative cable covers conceal the wiring that runs along the arm
- Ultra-slim full-motion wall mount built for commercial interactive displays and TVs
- Manufactured by VSYS for reliable everyday use
Specifications
- Model: VSYS VS02US-464
- Accessory Type: TV Wall Mount
- Mounting Type: Wall Mount, ultra-slim full motion
- Display Compatibility: 43" – 90", flat or curved
- VESA Pattern: 100x200 mm to 600x400 mm (maximum hole spread 602x400 mm)
- Maximum Load: 50 kg
- Tilt Range: +3° to -15°, free-tilting
- Swivel Range: +30° to -30°
- Screen Levelling: +3° to -3°, independent adjustment
- Extension Range: 19.5 mm folded to 250 mm extended
- Wall Plate: Solid wall or dual stud at 406 mm or 450 mm spacing
- Material: Steel and plastic, RoHS certified
- Certifications: RoHS, strength tested to 4x rated load
- In the Box: Ultra-slim arm, wall plate, mounting hardware bag, decorative cable covers, hook-on bubble level, printed installation guide
- Brand: VSYS
Ideal for: Ideal for schools, offices, and control rooms in Karachi, Quetta, and Faisalabad that need a secure, properly sized ultra-slim full-motion wall mount for their interactive display or commercial TV.
Frequently asked questions
Where can I buy the VSYS VS02US-464 in Pakistan?
Touchscreens.com.pk supplies the VSYS VS02US-464 across Pakistan, including Karachi and Faisalabad, with delivery and after-sales support included.
How slim is the VSYS VS02US-464 when it is folded away?
19.5 mm. That is close enough that most people read it as a fixed low-profile mount until somebody pulls the screen out, which is why it works on feature walls, showroom elevations and executive offices.
How far does the VSYS VS02US-464 extend and swivel?
The arm reaches 250 mm from the wall and swivels plus 30 to minus 30 degrees. Tilt is free-moving through plus 3 to minus 15 degrees, with a separate plus 3 to minus 3 degree levelling adjustment.
What size and weight of display does the VSYS VS02US-464 support?
Flat or curved panels from 43" to 90" weighing up to 50 kg, on a RoHS-certified steel and polymer structure that has been tested to four times its rated load.
What VESA patterns does the VSYS VS02US-464 fit?
From 100x200 mm to 600x400 mm, with a maximum mounting-hole spread of 602x400 mm. Send us the display model and we will confirm the pattern before you commit to an order.
What is the price of the VSYS VS02US-464?
Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.
What is included with the VSYS VS02US-464?
The ultra-slim arm, wall plate, mounting hardware bag, decorative cable covers, a hook-on bubble level and a printed installation guide.
Does the VSYS VS02US-464 need two studs?
The plate suits a dual-stud fixing at 406 mm or 450 mm spacing, and it installs equally well into solid concrete or block. Tell us the wall construction and we will specify anchors with the quotation.
Do you install the VSYS VS02US-464 on site and deliver outside major cities?
Yes. Our technicians handle wall fixing and cable concealment for teams in Islamabad and Peshawar, and we deliver nationwide from our Pakistan warehouse.
What warranty and local support come with the VSYS VS02US-464?
It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.
Request a quote for the VSYS VS02US-464 Ultra-Slim Full-Motion Wall Mount for 43"–90" Displays, 50 kg: call +971 56 914 9477, message us on WhatsApp, or email info@touchscreens.com.pk. Touchscreens.com.pk — interactive displays & AV across Pakistan, delivered in Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad and nationwide.
Full specifications
DISPLAY
TOUCH
COMPUTE
CONNECTIVITY
AUDIO & CAMERA
PHYSICAL & POWER
What’s in the box
Supplied with the product
Ultra-slim full-motion arm, wall plate, mounting hardware bag, decorative cable covers, hook-on bubble level, printed installation guide
Cables included
Confirmed on your quotation
Added by us, at no cost
Wall mounting & cable management. Commissioning & network setup. Staff training session. On-site warranty card.
Installation & warranty
A large panel weighs 40–60 kg, so mounting is not a job for a drill and good intentions. Our engineers check the wall type, set the mount height for the room, run and conceal the cabling, commission the Android and network settings, and hand over only after your staff have used it.
Warranty is handled on-site by our own service team — you call us, we come to the room. Spares for the brands we distribute are held in Pakistan, so a panel is not out of service waiting on an import.
COVERED CITIES
Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Peshawar, Multan, Quetta
GOES WELL WITH
FAQ
Frequently asked questions
Marked up as FAQPage schema so Google and AI assistants can quote these answers.
Pricing depends on quantity, warranty term, mounting and city of installation, so we quote each order individually. Send a request through this page, WhatsApp or a phone call and you will have a firm, itemised quotation — typically within one working hour during business hours.
Yes. We wall-mount or trolley-mount the unit, run cabling, commission it and train your staff. Our engineers cover Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Peshawar, Multan and Quetta, and we travel for institutional orders elsewhere in Pakistan.
Three years minimum, on-site, handled by our own service team as an authorised supplier — not a send-it-back-to-the-importer arrangement.
Yes — free, at your own school or office, with no obligation. We can also demonstrate two sizes side by side so you can judge viewing distance in your actual room.
