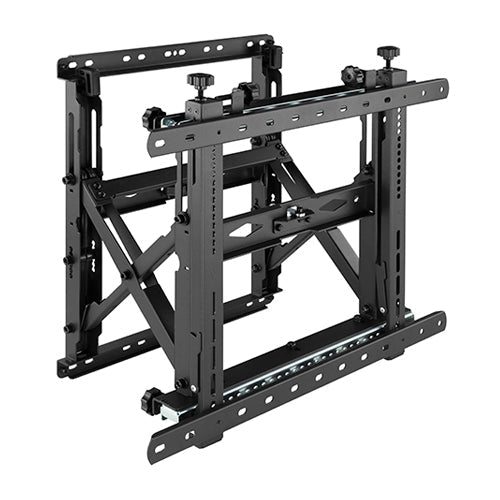

VSYS VSVW13-610T Push-Pull Video Wall Mount for Displays up to 120", 130 kg

The VSYS VSVW13-610T is a large-format push-pull video wall mount from VSYS, supplied across Pakistan by Touchscreens.com.pk.

As a video wall mount it is specified per panel, not per room — a tiled array of four, six or nine screens uses one VSVW13-610T behind every tile. Each unit carries up to 130 kg and displays as large as 120", and micro-adjustment of 13.5 mm in depth and 13 mm in height lets an installer bring every panel in the grid onto the same plane so the seams disappear.

Built by VSYS with a cold-rolled steel bracket arm and wall plate, the VSVW13-610T pops a single tile forward from the array on its push-pull mechanism, giving 120 mm to 325 mm of working clearance to swap a media player or reseat a cable — so a control-room or retail wall in Pakistan can be serviced one screen at a time without stripping the whole grid.

Key features

• Push-pull pop-out mechanism releases one tile from the array with a push on the panel — no tools, no ladder work on neighbouring screens
• Working clearance of 120 mm to 325 mm when extended, enough to reach connectors, players and signal boxes behind a large panel
• Micro-adjustment of 13.5 mm depth and 13 mm height aligns adjacent tiles into a single flat plane and closes visible seams
• Deliberately shallow tilt of +2° to -3° — a video wall must stay planar, so the range is for levelling, not for angling the screen
• Portrait or landscape mounting supports both signage columns and conventional grid layouts from the same part number
• Rated to 130 kg per mount and displays up to 120", covering the heaviest commercial LCD tiles in this class
• Anti-theft locking design keeps tiles secure in unattended retail, transit and lobby installations
• Cold-rolled steel arm and wall plate with a fine-texture black powder coat, strength tested to four times the rated load
• Accepts VESA patterns from 200x200 mm to 1000x600 mm, so mixed panel generations can share one mount specification

Specifications

• Model: VSYS VSVW13-610T
• Accessory Type: Push-Pull Video Wall Mount
• Mounting Type: Wall Mount, tiled video wall array
• Display Compatibility: Commercial displays up to 120"
• VESA Pattern: 200x200 mm to 1000x600 mm
• Maximum Load: 130 kg per mount
• Movement: Push-pull pop-out extension
• Wall Clearance: 120 mm to 325 mm
• Tilt Range: +2° to -3°, for levelling
• Micro-Adjustment: 13.5 mm depth, 13 mm height
• Orientation: Portrait or landscape
• Security: Anti-theft locking design
• Material: Cold-rolled steel bracket arm and wall plate
• Finish: Fine-texture black powder coating
• Testing: Strength tested to 4x rated load
• In the Box: Wall plate, pop-out bracket arms, heavy-duty mounting hardware kit, anti-theft lock fitting, installation instructions
• Brand: VSYS

Ideal for: Ideal for schools, offices, and control rooms in Islamabad, Rawalpindi, and Karachi that need a secure, properly sized push-pull video wall mount for their interactive display or commercial TV.

Frequently asked questions

Where can I buy the VSYS VSVW13-610T in Pakistan?

Touchscreens.com.pk supplies the VSYS VSVW13-610T across Pakistan, including Islamabad and Rawalpindi, with delivery and after-sales support included.

What is the price of the VSYS VSVW13-610T?

Pricing depends on quantity and any bundled accessories or installation, so we share a formal quotation on request — contact our team for a tailored quote.

How many VSYS VSVW13-610T mounts does a video wall need?

One per screen. A 2x2 wall takes four, a 3x3 takes nine — tell us your grid layout and panel model and we will quote the full set with the right fixings.

How does the push-pull mechanism on the VSYS VSVW13-610T work?

Pushing the face of the panel releases the pop-out arm, which brings that single tile forward to between 120 mm and 325 mm of clearance for rear access. Pushing it back re-seats and locks it flush with the rest of the array.

How do you get every panel in the array perfectly aligned?

Each VSYS VSVW13-610T has 13.5 mm of depth and 13 mm of height micro-adjustment, so installers can walk the wall and dial each tile onto the same plane and datum line until the seams read as one surface.

Why does the VSYS VSVW13-610T only tilt a few degrees?

Because a video wall has to stay flat. The +2° to -3° range exists to correct an out-of-plumb wall, not to angle the display — wider tilt would break the continuity of the image across tiles.

What size and weight of display does the VSYS VSVW13-610T support?

Commercial panels up to 120" and 130 kg per mount, with VESA patterns from 200x200 mm up to 1000x600 mm.

Can the VSYS VSVW13-610T be used in portrait orientation?

Yes. It mounts in portrait or landscape, which suits vertical signage columns and mixed-orientation feature walls as well as conventional grids.

What warranty and local support come with the VSYS VSVW13-610T?

It is covered by a VSYS manufacturer warranty, and Touchscreens.com.pk provides local after-sales support across Pakistan.

Can you supply the VSYS VSVW13-610T for bulk orders or government tenders?

Yes, we regularly supply schools, universities, and enterprises with bulk orders and support tender documentation, compliance certificates, and staged delivery — including matched sets sized to a specific video wall grid.
